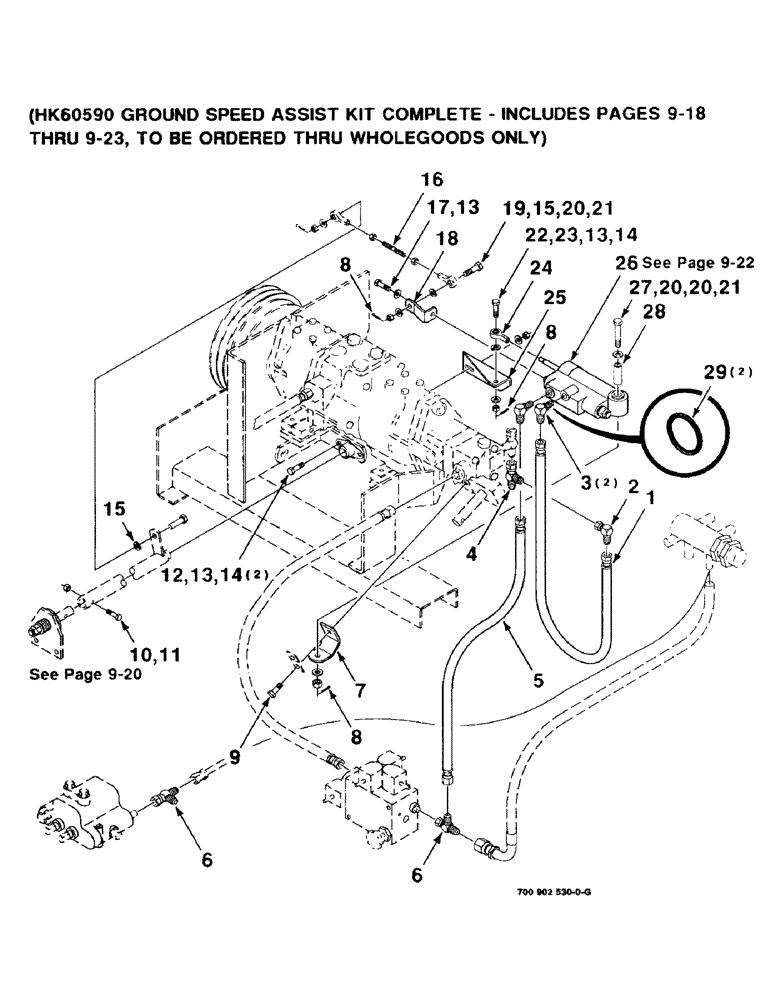

Запчасти Case IH 8830 (9-18) - GROUND SPEED ASSIST KIT, HK60590 GROUND SPEED ASSIST KIT COMPLETE. INCLUDES PAGES 9-18 THRU 9-22 (09) - CHASSIS

HK60590

GROUND SPEED ASSIST KIT COMPLETE (Includes pages 9-18 thru 9-22)

1шт.

1

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

1шт.

2

700707491

ELBOW

90 DEGREES

1шт.

3

700707498

ELBOW

90 DEGREES (Includes item 29)

2шт.

4

8746448

TEE

FITTING - hydraulic, T-adapter

1шт.

5

700703840

HOSE

- hydraulic

1шт.

6

7846850

TEE

- swivel, run

2шт.

7

700121184

SUPPORT

- mounting

1шт.

8

62034

BATTERY

3/32 X 3/4 COTTER PIN

3шт.

9

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

10

71019

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS SPL

1шт.

11

704163

LOCK NUT

5/16-18 HTLN GR/B

1шт.

12

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 X 1 C

2шт.

13

705525

WASHER

5/16 HARDENED PLAIN WASHER

4шт.

14

704015

NUT,5/16"-18, G5

5/16-18 H

3шт.

15

705038

CONTROL VALVE

3/8"

2шт.

16

700121177

ROD

1шт.

17

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 X 3/4 C

1шт.

18

700121183

BRACKET

ANGLE

1шт.

19

700111557

SCREW

3/8-16 X 1-1/2 C, special

1шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

3шт.

21

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

22

700121188

SCREW

5/16-18 X 1-1/2 C, special

1шт.

23

705020

LOCK WASHER

5/16"

1шт.

24

700710788

TRACK ROD END

BEARING - end, rod

1шт.

25

700121185

ANGLE

- support

1шт.

26

700710787

SERVO-CONTROL

SERVO CONTROL VALVE

1шт.

27

700121189

SCREW

3/8-16 X 2-3/4 C, special

1шт.

28

700121187

BUSHING

1шт.

29

7040397

O-RING

2шт.
