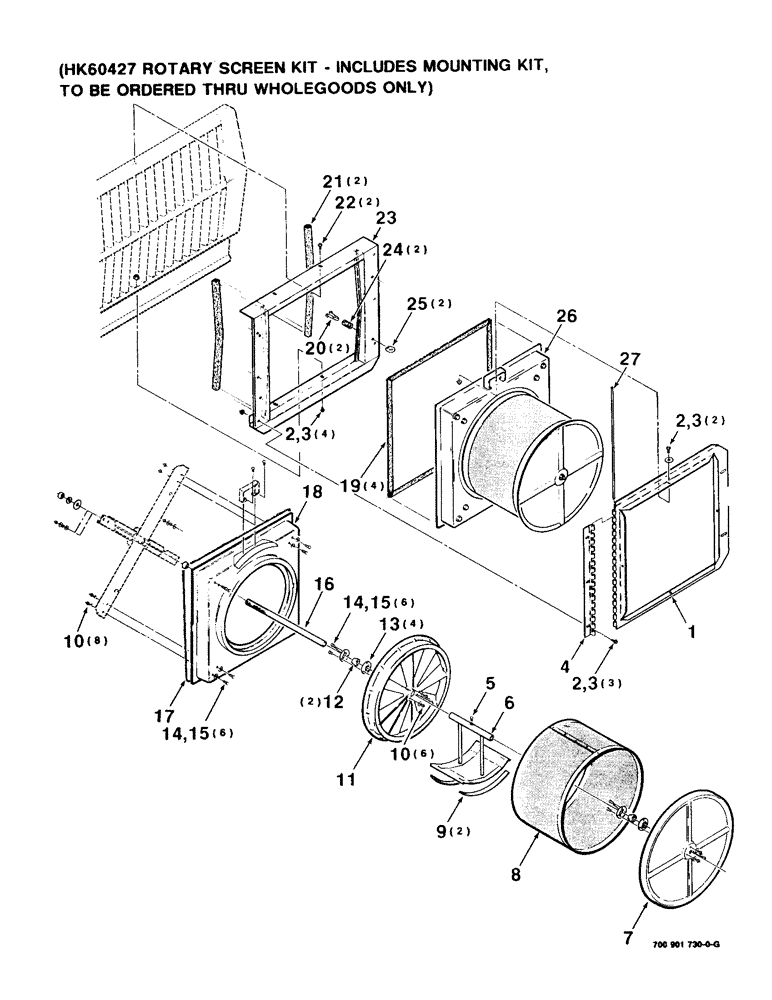

Запчасти Case IH 8830 (9-16) - ROTARY SCREEN KIT, HK60427 ROTARY SCREEN KIT, INCLUDES MOUNTING KIT (09) - CHASSIS

HK60427

ATTACHMENT

ROTARY SCREEN KIT COMPLETE (Includes mounting kit)

1шт.

1

700116983

FRAME

WA - door

1шт.

2

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

9шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

9шт.

4

700116977

HINGE

1шт.

5

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 X 1/2 C

1шт.

6

8799207

BAFFLE

1шт.

7

8799173

COVER

END - cover

1шт.

8

8799199

SCREEN

- rotary

1шт.

9

8799256

LARGE PLATE

STRIP - foam

2шт.

10

704395

NUT

1/4-20 HEX LIGHT STOP NUT

10шт.

11

8799215

FAN

WHEEL

1шт.

12

8799181

SPHERICAL BEARING

- spherical

2шт.

13

163550

FLANGE

- bearing

4шт.

14

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

12шт.

15

704007

NUT,1/4"-20, G5

1/4-20 H

12шт.

16

8799223

SHAFT

- fan

1шт.

17

8799249

SEAL

- air

1шт.

18

8799231

GUARD

SHROUD - fan

1шт.

19

700116974

SEAL

STRIP - seal

4шт.

20

7894975

CLIP

- fastener

2шт.

21

700116975

SEAL

2шт.

22

701953

SELF-TAP SCREW

5/16-18 X 3/4 HWHTCTS

2шт.

23

700116978

FRAME

- mounting

1шт.

24

7758212

SPRING

- compression

2шт.

25

7894967

HANDLE

- fastener

2шт.

26

8745747

SCREEN

ASSEMBLY - rotary

1шт.

27

700116976

PIN

- hinge

1шт.
