(9-14) - RADIO MOUNTING KIT, 102342A2 RADIO MOUNTING KIT COMPLETE, FOR MOUNTING 2 SHAFT& DIN E STYLE RADIOS

Запчасти Case IH 8830 (9-14) - RADIO MOUNTING KIT, 102342A2 RADIO MOUNTING KIT COMPLETE, FOR MOUNTING 2 SHAFT& DIN E STYLE RADIOS (09) - CHASSIS

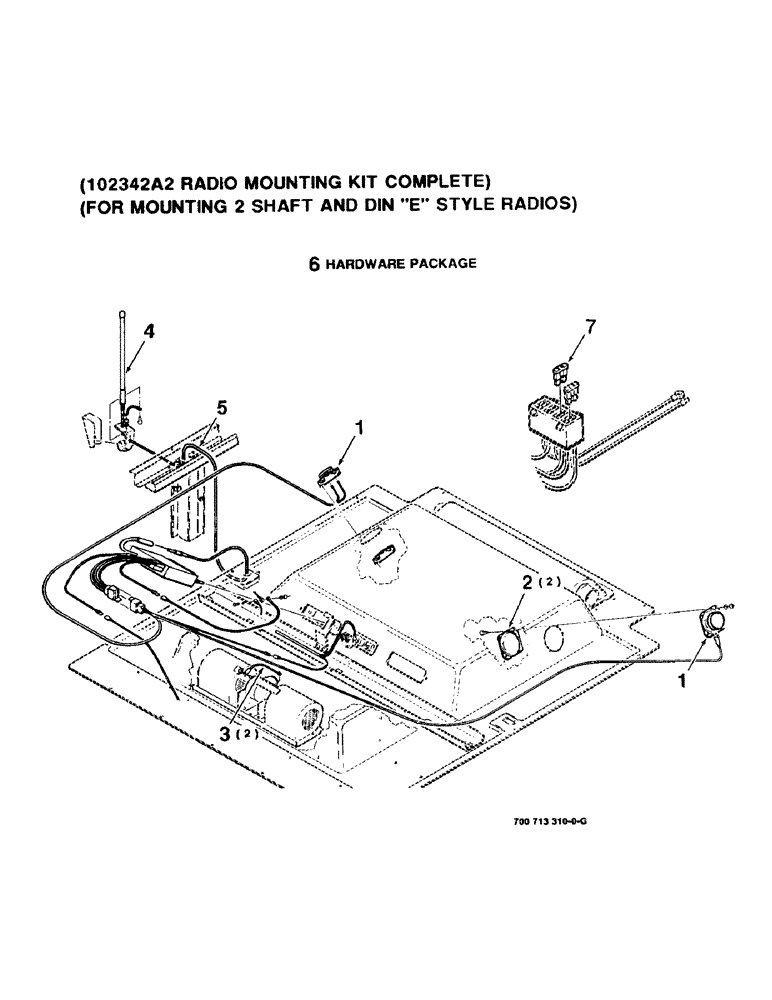

Схема запчастей Case IH 8830 - (9-14) - RADIO MOUNTING KIT, 102342A2 RADIO MOUNTING KIT COMPLETE, FOR MOUNTING 2 SHAFT& DIN E STYLE RADIOS (09) - CHASSIS
7
6
4
1
3
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

102342A2

MOUNTING PARTS

RADIO MOUNTING KIT COMPLETE

1шт.

1

1701341

SENDER UNIT

2шт.

2

700710091

GRILLE

GRILL - speaker

2шт.

3

700705709

SUPPRESSOR

NOISE SUPPRESSOR

2шт.

4

700711763

ANTENNA

1шт.

5

700704883

ELECTRIC CABLE

CABLE

1шт.

6

700712905

WASHER

HARDWARE PACKAGE

1шт.

7

700705710

FUSE

- blade, 3-amp

1шт.

Ref # 7 700704883 Cable - if dealer needs a 48" long cable - order ZAE1181080...the antenna used on late model Windrowers is ZAE1181039.

1шт.
