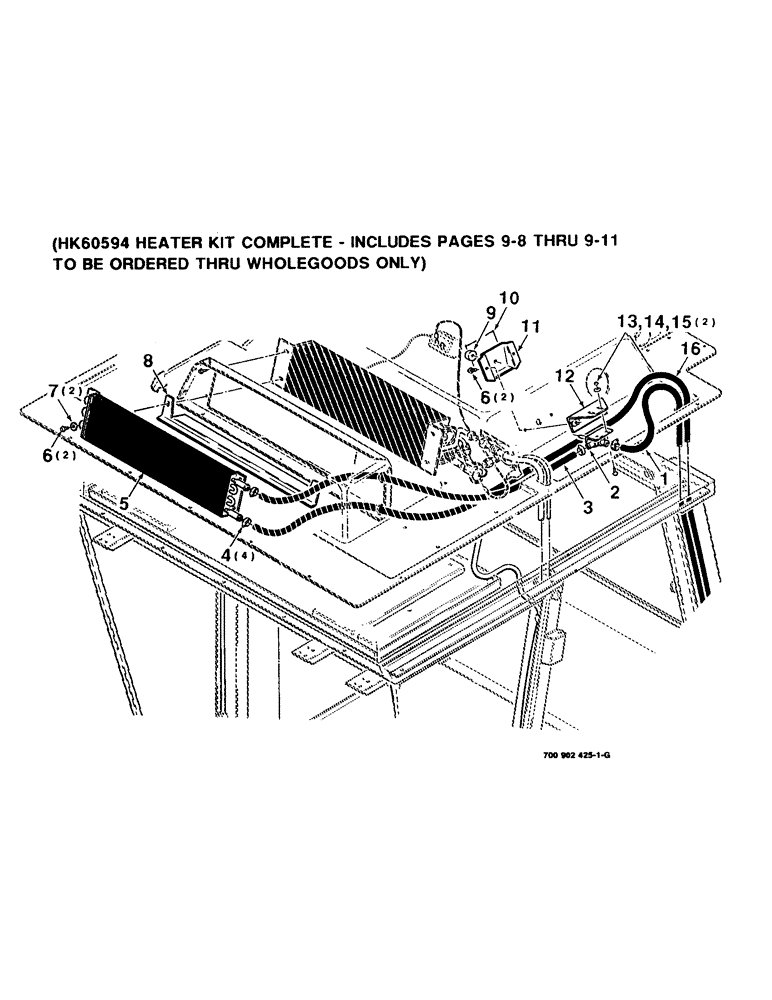

Запчасти Case IH 8830 (9-08) - HEATER KIT, HK60594 HEATER KIT COMPLETE, INCLUDES PAGES 9-8 THRU 9-10 (09) - CHASSIS

HK60594

HEATER

KIT COMPLETE (Continued on page 9-10)

1шт.

1

700120993

HEATER HOSE,0.63" ID x 77.95"

HOSE , Heater, Pressure 0.63" ID x 77.95"

1шт.

2

700709777

HYDRAULIC VALVE

VALVE - water, control

1шт.

3

700120994

HEATER HOSE,0.63" ID x 33.23"

HOSE , Heater, Pressure 0.63" ID x 33.23"

1шт.

4

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP

4шт.

5

700709005

CORE

- heater

1шт.

6

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

4шт.

7

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

8

700120672

PAN

- drain

1шт.

9

7722622

KNOB

- control

1шт.

10

700709795

DECAL

- heater

1шт.

11

700120988

PANEL

COVER - valve (Includes item 10)

1шт.

12

700120990

SUPPORT

VALVE - support

1шт.

13

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

2шт.

14

70925966

WASHER

#10 PLAIN WASHER

2шт.

15

704445

NUT

#10-32 H GR2

2шт.

16

700120992

HEATER HOSE,0.63" ID x 118.11"

HOSE , Heater, Return 0.63" ID x 118.11"

1шт.
