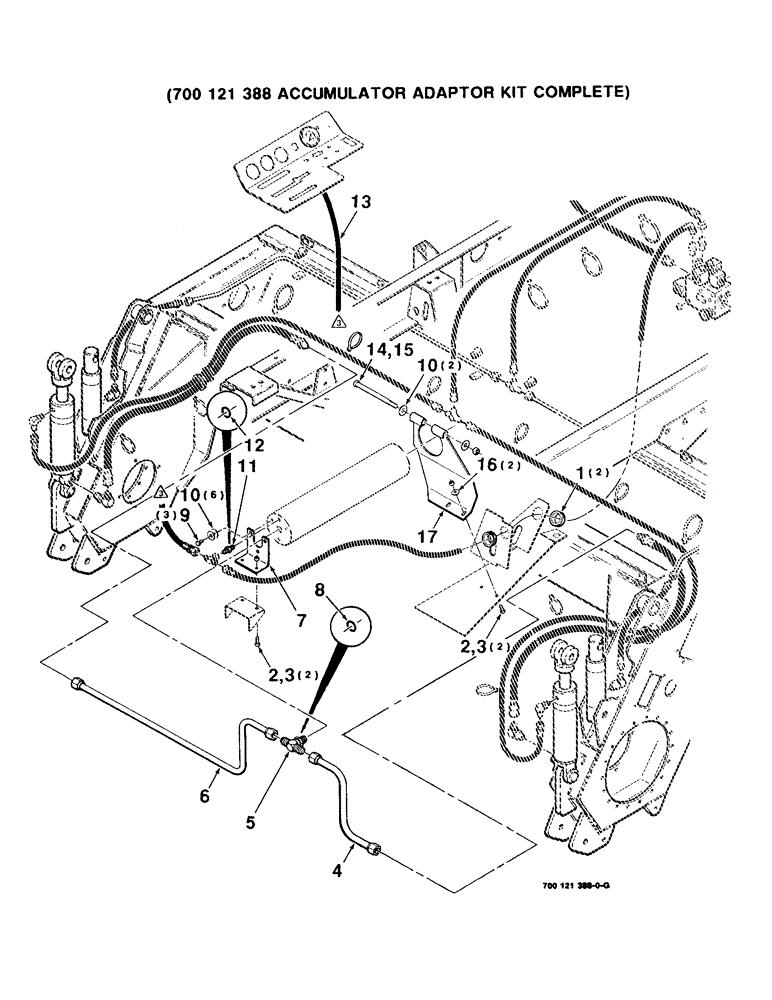

Запчасти Case IH 8830 (9-06) - ACCUMULATOR ADAPTOR KIT, 700121388 ACCUMULATOR ADAPTOR KIT COMPLETE (09) - CHASSIS

700121388

KIT

ACCUMULATOR ADAPTER KIT COMPLETE

1шт.

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

2

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

3

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

4

700710193

TUBE,19.05 mm OD, 284, 250 mm Length

LINE - hydraulic

1шт.

5

700706902

TEE

FITTING - tee (Includes item 8)

1шт.

6

700710691

TUBE,19.05 mm OD, 956, 250 mm Length

LINE - hydraulic

1шт.

7

700121191

SUPPORT

- accumulator

1шт.

8

738484

O-RING

1шт.

9

873364

HARDWARE

1/2-20 X 3/4 C

3шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

8шт.

11

846634

COUPLING, BREAK AWAY

CONNECTOR - flared (Includes item 12)

1шт.

12

738468

O-RING

1шт.

13

700710851

HYDRAULIC HOSE,6.35 mm ID x 1500.00 mm, TYPE 100R1 SAE J517

6.35 mm ID x 1500.00 mm, TYPE 100R1 SAE J517

1шт.

14

873547

BOLT

1/2-13 X 7 C

1шт.

15

704031

NUT

1/2-13 H

1шт.

16

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

17

700121190

SUPPORT

- accumulator

1шт.
