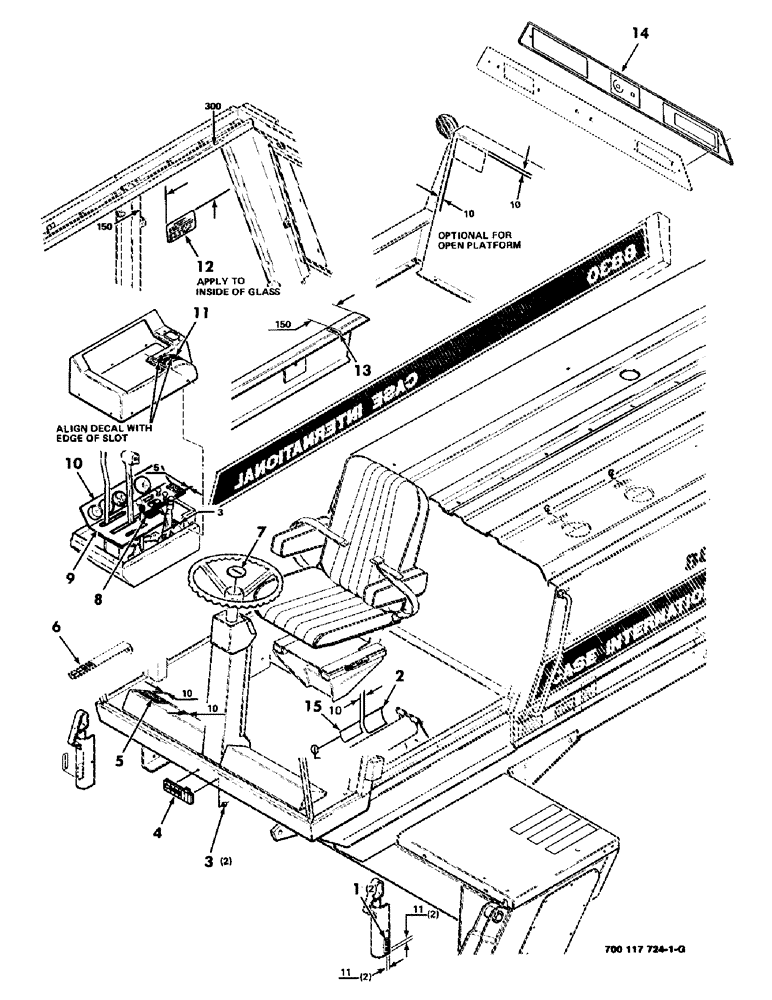

Запчасти Case IH 8830 (9-02) - DECAL LOCATION DIAGRAM, FRONT (09) - CHASSIS

1

700706023

DECAL

- safety stop

2шт.

2

700711651

DECAL

- accumulator info.

1шт.

3

700708112

NUT

PALNUT

2шт.

4

A181437

EMBLEM CASE/IH

CASE IH MEDALLION

1шт.

5

7178932

DECAL

- warning

1шт.

6

700707691

DECAL

- indicator

1шт.

7

A180055

CAP ASSY.

DECAL - insert

1шт.

8

700704951

DECAL

- caution

1шт.

9

700706918

DECAL

- panel, console, lower

1шт.

10

700707775

DECAL

- panel, console, upper

1шт.

11

700706290

DECAL

- parking brake

1шт.

12

700709415

DECAL

- header wear

1шт.

13

7889306

DECAL

- grease symbol

1шт.

14

700705144

DECAL

- panel, headliner

1шт.

15

700713550

DECAL

- danger

1шт.
