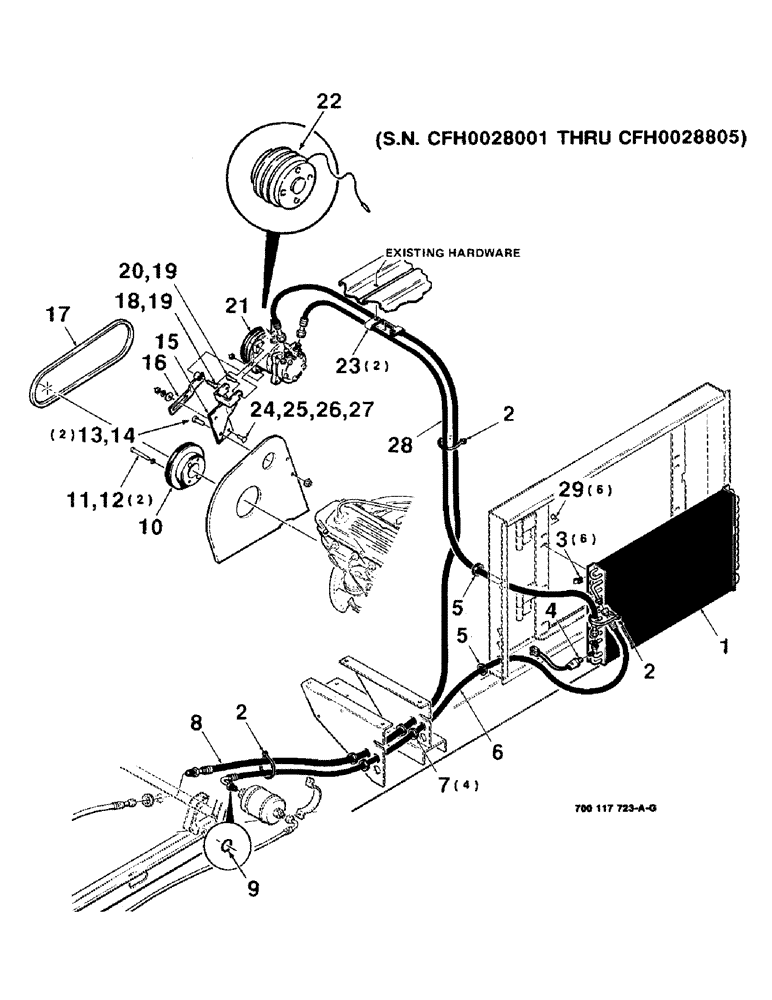

Запчасти Case IH 8830 (7-50) - AIR CONDITIONER COMPRESSOR AND MOUNTING ASSEMBLY, GAS, SERIAL NUMBER CFH0028001 THRU CFH0028805 (09) - CHASSIS

1

700706187

CONDENSER

CONDENSOR

1шт.

2

722470

MOUNTING CLIP

TIE - cable

3шт.

3

74807

NUT

1/4-20 SPEED NUT

6шт.

4

7722929

SWITCH

- pressure

1шт.

5

8027179

GROMMET

2шт.

6

700705093

FLEXIBLE HOSE

HOSE ASSEMBLY (Includes item 9)

1шт.

7

8827172

GROMMET

4шт.

8

700708096

FLEXIBLE HOSE

HOSE ASSEMBLY

1шт.

9

7744063

O-RING

1шт.

10

6606644

SHEAVE

1шт.

11

7701345

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 C

2шт.

12

700702206

LOCK WASHER

7/16 L

2шт.

13

7701063

SCREW,Hex, 1/2" - 20 x 1 1/4", Gr 5

1/2-20 X 1-1/4 C

2шт.

14

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

2шт.

15

6606602

BRACKET

MOUNT - compressor

1шт.

16

66906578

STRAP - mounting

1шт.

17

56408

V-BELT,1221.74 mm L

1221.74 mm L

1шт.

18

703603

SCREW

3/8-16 X 1-1/2 C

1шт.

19

704635

NUT

3/8-16 HCLN

2шт.

20

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

1шт.

21

7807944

AIRCOND. COMPRESSOR

ASSEMBLY (Includes item 22)

1шт.

7807944R

REMAN-ANEROID

8830 - AIR CONDITIONER COMPRESSOR AND MOUNTING ASSEMBLY, GAS, SERIAL NUMBER CFH0028001 THRU CFH0028805

1шт.

7807944C

CORE-COMPRESSOR

Return Number

1шт.

22

700709771

CLUTCH

ASSEMBLY

1шт.

23

756486

CLAMP

2шт.

24

700047

BOLT

3/8-16 X RHSNB

1шт.

25

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

26

705038

CONTROL VALVE

3/8"

1шт.

27

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

28

700710703

FLEXIBLE HOSE

HOSE ASSEMBLY

1шт.

29

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

6шт.
