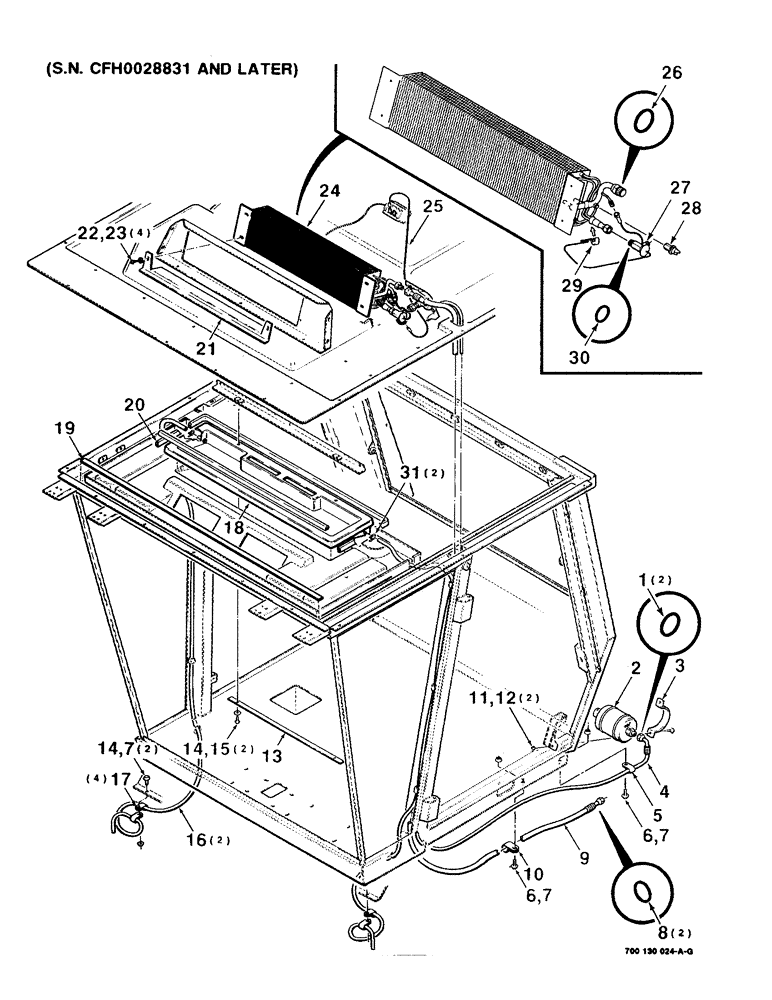

Запчасти Case IH 8830 (7-48) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY, SERIAL NUMBER CFH0028831 AND LATER (09) - CHASSIS

1

700712717

O-RING

2шт.

2

700705099

RECEIVER-DRYER

RECEIVER - dryer

1шт.

3

6804587

CLAMP

- dryer

1шт.

4

700712706

HOSE

ASM. - 5/16 I.D. (Includes item 1)

1шт.

5

756460

CLAMP

1шт.

6

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

4шт.

8

700712719

O-RING

2шт.

9

700712716

HOSE

ASM. - 1/2 I.D. (Includes item 8)

1шт.

10

7898737

CLAMP

1шт.

11

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

12

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

2шт.

13

700115437

STRAP

1шт.

14

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

4шт.

15

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

16

700110137

HOSE,0.50" ID x 156.10",

Drain 0.50" ID x 156.10"

2шт.

17

755744

CLAMP

4шт.

18

700119893

PAN

ASSEMBLY - drain

1шт.

19

6805055

SEAL

(12 foot bulk length)

1шт.

20

700110139

SEAL

SEAL (12 foot bulk length)

1шт.

21

700120672

PAN

- drain

1шт.

22

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

4шт.

23

705517

WASHER

1/4 HARDENED PLAIN WASHER

4шт.

24

700712700

HEATER ASSY.

CORE - evaporator (Includes item 26)

1шт.

25

700706889

WIRE

- electrical

1шт.

26

700712718

O-RING

- neoprene (.426 I.D.)

1шт.

27

700711760

VALVE

- expansion (Includes item 30)

1шт.

28

700706904

PRESSURE SWITCH

SWITCH - low pressure

1шт.

29

8020398

CLAMP

- spring

1шт.

30

700712771

O-RING

- neoprene (.176 I.D.)

1шт.

31

700710487

CLAMP

2шт.
