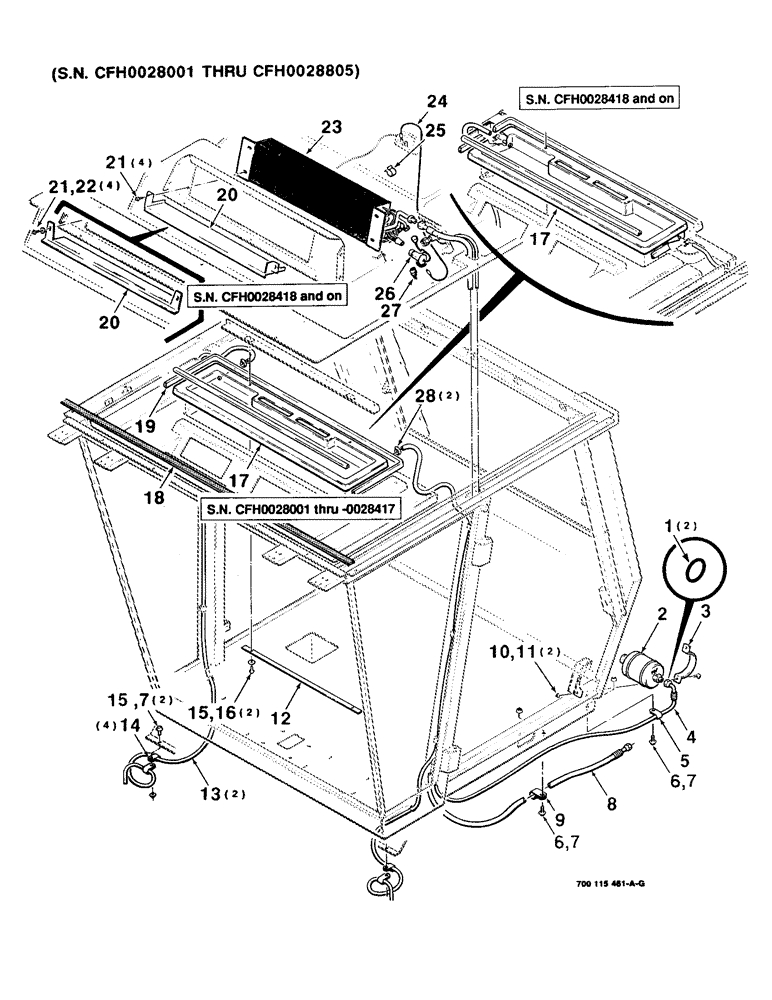

Запчасти Case IH 8830 (7-46) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY, SERIAL NUMBER CFH0028001 THRU CFH028805 (09) - CHASSIS

1

7744063

O-RING

2шт.

2

700705099

RECEIVER-DRYER

RECEIVER - dryer

1шт.

3

6804587

CLAMP

- dryer

1шт.

4

700705094

FLEXIBLE HOSE

HOSE ASM. (Includes item 1)

1шт.

5

756460

CLAMP

1шт.

6

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 X HFSLN

4шт.

8

700705098

FLEXIBLE HOSE

HOSE

1шт.

9

7898737

CLAMP

1шт.

10

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

11

704221

NUT

1/4-20 HFSLN

2шт.

12

700115437

STRAP

1шт.

13

700110137

HOSE,0.50" ID x 156.10",

Drain 0.50" ID x 156.10"

2шт.

14

755744

CLAMP

4шт.

15

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

4шт.

16

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

17

700110141

PAN

DRAIN (S.N. CFH0028001 thru CFH0028455)

1шт.

700119893

PAN

- drain (Includes 700121359 asm.) (S.N. CFH0028481 and later)

1шт.

18

6805055

SEAL

(12 foot bulk length)

1шт.

19

700110139

SEAL

SEAL (12 foot bulk length)

1шт.

20

700110140

PAN

- drain, front (S.N. CFH0028001 thru CFH0028417)

1шт.

700120672

PAN

- drain (S.N. CFH0028418 and later)

1шт.

21

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

4шт.

22

705517

WASHER

1/4 HARDENED PLAIN WASHER

4шт.

23

700706905

EVAPORATOR

CORE - evaporator

1шт.

24

700706889

WIRE

- electrical

1шт.

25

8020398

CLAMP

- spring

1шт.

26

7022304

VALVE

- expansion

1шт.

27

700706904

PRESSURE SWITCH

SWITCH - low pressure

1шт.

28

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP (S.N. CFH0028001 thru CFH0028455)

2шт.

700710487

CLAMP

(S.N. CFH0028481 and later)

2шт.
