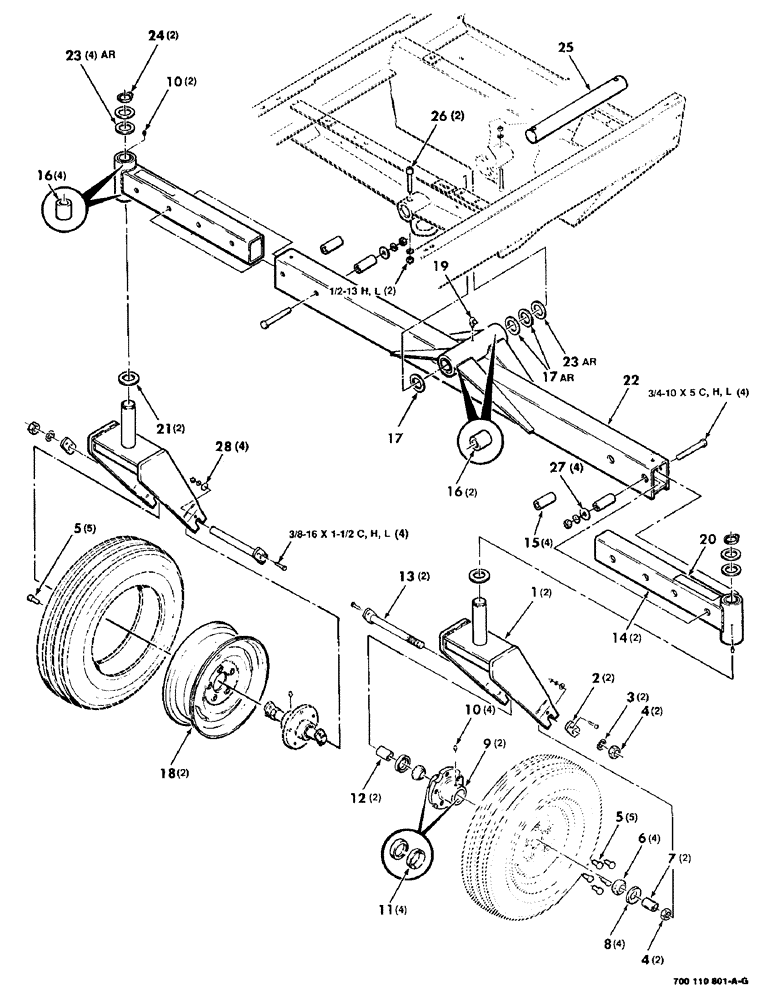

Запчасти Case IH 8830 (7-44) - TAIL WHEEL ASSEMBLY (09) - CHASSIS

1

700110962

FORK

(8.5" opening)

2шт.

700124270

FORK

(10.394" opening)

2шт.

700124275

SHAFT

AXLE

2шт.

700124277

SPACER

2шт.

700124278

SPACER

2шт.

2

305581

CLIP

2шт.

3

705103

LOCK WASHER

1" EXTERNAL TOOTH LOCK WASHER

2шт.

4

704049

NUT

1-14 HEX JAM NUT

2шт.

5

26328

BOLT,9/16" - 18 x 1.594", Grade 5

9/16-18 X 1-1/8 WHEEL BOLT

10шт.

6

710236

SUPPORT

BEARING CONE

4шт.

7

6177133

SPACER

(Use with 700110962)

2шт.

700124277

SPACER

(Use with 700124270)

2шт.

8

744888

SEAL

- grease

4шт.

9

6494777

HUB

WITH CONE

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

11

NLS

NO LONGER SERVICED

BEARING CUP

4шт.

12

700110970

SPACER

(Use with 700110962)

2шт.

700124278

SPACER

(Use with 700124270)

2шт.

13

305565

AXLE

(Use with 700110962)

2шт.

700124275

SHAFT

AXLE (Use with 700124270)

2шт.

14

700110959

EXTENSION

- beam

2шт.

15

700110971

SPACER

4шт.

16

852491

BRONZE BUSHING

4шт.

17

7852866

BUSHING

2 X 18 GAUGE MACHINERY BUSHING

3шт.

18

700707956

WHEEL

- rear, 15"

2шт.

19

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 X 90 DEGREE ZERK

1шт.

20

6849178

WALL

TREAD - safety (10 ft. bulk)

1шт.

21

6462519

SHIM

2шт.

22

700110953

BEAM

- rocker

1шт.

23

52548

SPECIAL WASHER

2 X 14 GAUGE MACHINERY BUSHING

5шт.

24

852665

RING, SNAP

SNAP RING

2шт.

25

6270219

SHAFT

- pivot

1шт.

26

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS

2шт.

27

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

28

705533

WASHER

3/8 HARDENED PLAIN WASHER

4шт.

703603

SCREW

3/8-16 X 1-1/2 C

4шт.

703660

BOLT,Hex 3/4" - 10 x 5", Gr 5

3/4-10 X 5 C

4шт.
