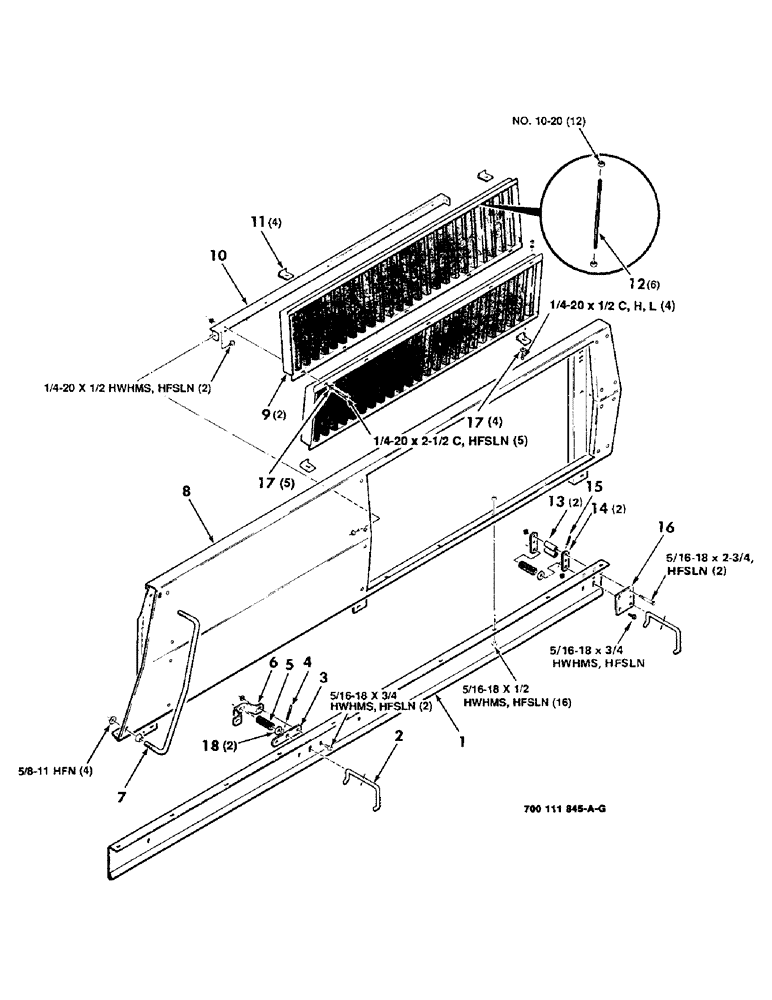

Запчасти Case IH 8830 (7-40) - SIDE PANEL ASSEMBLY, LEFT (09) - CHASSIS

1

700111850

PANEL

- lower, left

1шт.

2

700111868

HANDLE

2шт.

3

700111870

LARGE PLATE

PLATE

1шт.

4

438-11232

LOCK PIN,3/16" x 2", Slotted

3/16 X 2-1/4 SLOTTED SPRING PIN

1шт.

5

58685

SPRING

2шт.

6

700111869

BRACKET

MOUNTING - latch

1шт.

7

700111867

HANDLE

1шт.

8

700111972

PANEL

ASSEMBLY - left

1шт.

9

700111861

FILTER

SCREEN - radiator

2шт.

10

700111859

CHANNEL

1шт.

11

700111860

STOP

STEP

4шт.

12

700115812

ROD

- tie

6шт.

13

6228852

SPACER

2шт.

14

700114976

LARGE PLATE

PLATE

2шт.

15

763482

PIN

3/16 X 1-1/8 SLOTTED SPRING PIN

1шт.

16

700117729

LARGE PLATE

PLATE

1шт.

17

705517

WASHER

1/4 HARDENED PLAIN WASHER

9шт.

18

495-11053

WASHER,1/2", SAE

1/2 NARROW PLAIN WASHER

2шт.

703769

SCREW

5/16-18 X 2-3/4 C

2шт.

7703481

TUBE,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 X 1/2 C

4шт.

7773849

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1/4-20 X 2-1/4 C

5шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

16шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

4шт.

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GRADE 8

4шт.
