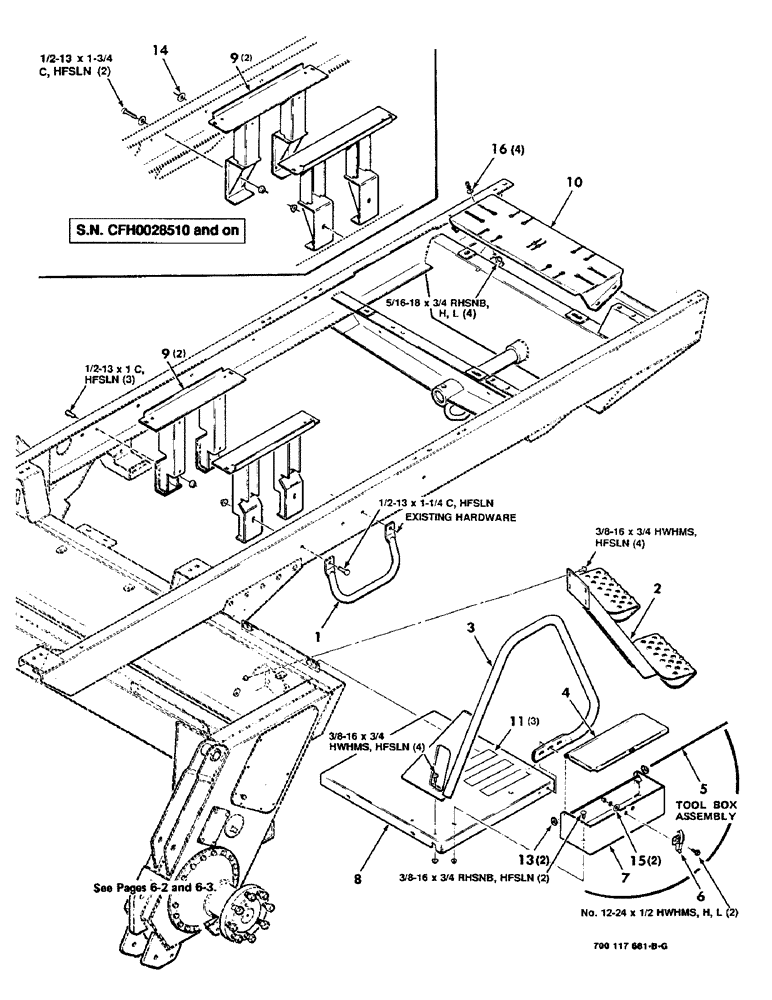

Запчасти Case IH 8830 (7-36) - PLATFORM STEPS, HAND RAILS ANDTOOL BOX ASSEMBLIES (09) - CHASSIS

1

700110902

STEP

1шт.

2

700110897

STEP

- riser

1шт.

3

700115439

HANDRAIL

RAIL

1шт.

4

700115913

LID

- tool box

1шт.

5

700115914

PIN

- hinge

1шт.

6

700706849

LATCH

- tool box

1шт.

7

700115910

TOOL BOX

1шт.

8

700110900

COVER

- left

1шт.

9

700110881

FRAME

- channel

2шт.

700122748

SUPPORT

FRAME - channel (S.N. CFH0028510 and on)

2шт.

10

700110899

RACK

- battery

1шт.

11

6849178

WALL

TREAD - safety (10 ft. bulk)

1шт.

13

700707858

SNAP RING

RETAINER - ring

2шт.

14

700709605

WASHER,1/2"

1/2 WIDE PLAIN WASHER

2шт.

15

705699

WASHER,#12

NO. 12 PLAIN WASHER

2шт.

16

705525

WASHER

5/16 HARDENED PLAIN WASHER

4шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 X 1 C

3шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

4шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

7шт.

700070227

SCREW,Hex Wash Hd, #12-24 x 1/2"

NO. 12-24 X 1/2 HWHMS

2шт.
