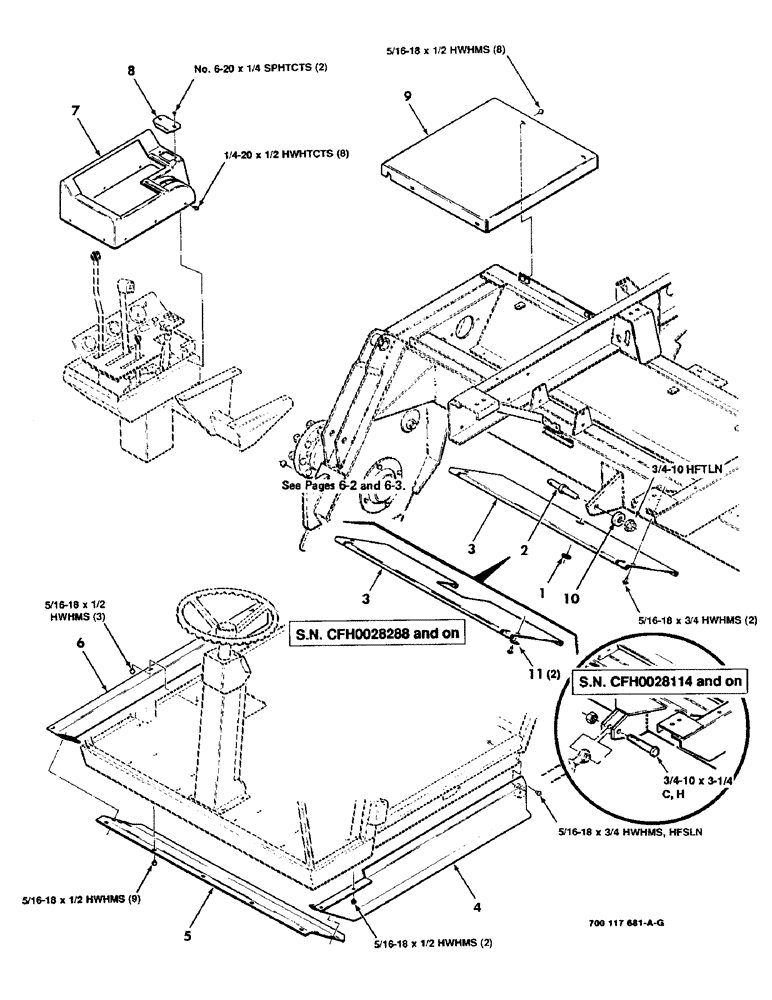

Запчасти Case IH 8830 (7-34) - LOWER PLATFORM SHIELD ASSEMBLIES (09) - CHASSIS

1

8027179

GROMMET

(S.N. CFH0028001 thru -0028263)

1шт.

2

700110217

PIN

(Sub. 700118875 pin and 700118876 spacer) (S.N. CFH0028001 thru -0028113)

1шт.

700118875

PIN

(Use with spacer 700118876) (S.N. CFH028001 thru -0028113)

1шт.

3

700111918

SHIELD

- front

1шт.

4

700111920

SHIELD

- left

1шт.

5

700111919

SHIELD

- front

1шт.

6

700111924

SHIELD

- right

1шт.

7

700111844

COVER

- console

1шт.

8

700111927

COVER

- fuse box

1шт.

9

700110901

COVER

- right

1шт.

10

700118876

SPACER

BUSHING

1шт.

11

700710049

WASHER

3/8 FENDER WASHER

2шт.

7701766

SCREW,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4-10 X 3-1/4 C

1шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

22шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

3шт.

701607

BRACKET

1/4-20 X 1/2 HWHTCTS

8шт.

700703923

LOCK NUT,Flg, 3/4"-10

NUT, LOCK, Flg, 3/4"-10

1шт.
