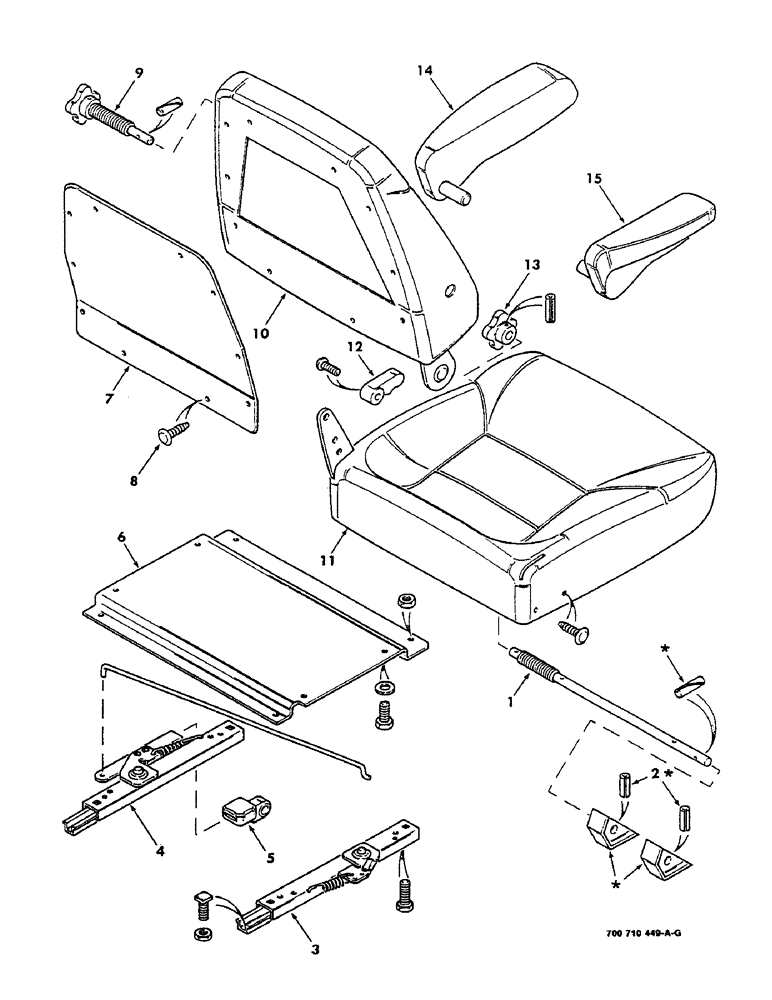

Запчасти Case IH 8830 (7-30) - SEAT ASSEMBLY (09) - CHASSIS

700710449

SEAT

ASM. COMPLETE (With backrest) (Superseded by 700712451 & 700712453) Includes : ref. nos 1, 2, 6, 7, 8, 9, 10, 11, 12, 13

1шт.

700712451

SEAT

(Without armrests & adapter plate) (S.N. CFH0028559 and later)

1шт.

700712453

LARGE PLATE

ADAPTER PLATE - seat (S.N. CFH0028559 and later)

1шт.

1

700711521

CAM

SHAFT, Includes items in art marked with asterisk

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

Part of Seat Cushion Assembly, P/N 700712452

1шт.

Part of Seat Cushion Assembly, P/N 700711520

1шт.

2

63370

PIN,5/32" x 1", Slotted

3шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

Part of Seat Cushion Assembly, P/N 700712452

1шт.

Part of Seat Cushion Assembly, P/N 700711520

1шт.

3

700709441

SLIDE

ASSEMBLY - slave

1шт.

4

700708807

SLIDE

LOCKING SLIDE ASSEMBLY (With handle)

1шт.

5

700711524

KNOB

- fore and aft

1шт.

6

700711525

PLATE

- adapt. (S.N. CFH0028114 thru CFH0028558) Superseded by 700712452 and 700712453

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

700712453

LARGE PLATE

PLATE - adapter, seat (S.N. CFH0028559 and later)

1шт.

700712452

CUSHION, SEAT

SEAT CUSHION ASSEMBLY (S.N. CFH0028559 and later)

1шт.

7

700708806

COVER

BACKREST COVER KIT (With clips)

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

8

700712457

CLIP

KIT - Christmas tree clip

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

9

700711522

KNOB

- lumbar

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

10

700709805

PAD

BACK PAD SERVICE KIT

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

Part of Seat Cushion Assembly, P/N 700712452

1шт.

Part of Seat Cushion Assembly, P/N 700711520

1шт.

11

700711520

CUSHION

SEAT CUSHION ASSEMBLY, Includes: ref. nos. 1, 2, 10, 11 & 12. Superseded by 700712452 & 3)

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

Part of Seat Cushion Assembly, P/N 700712452

1шт.

700712452

CUSHION, SEAT

SEAT CUSHION ASSEMBLY, Includes: ref. nos. 1, 2, 10, 11 and 12

1шт.

700712453

LARGE PLATE

PLATE - adapter, seat

1шт.

12

700711513

KIT

- service, back tilt

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

Part of Seat Cushion Assembly, P/N 700712452

1шт.

Part of Seat Cushion Assembly, P/N 700711520

1шт.

13

700710993

KNOB

- seat tilt

1шт.

Part of Complete Seat Assembly, P/N 700710449

1шт.

14

700708809

ARMREST

ARM REST - left

1шт.

15

700708810

ARMREST ASSY.

ARM REST - right

1шт.
