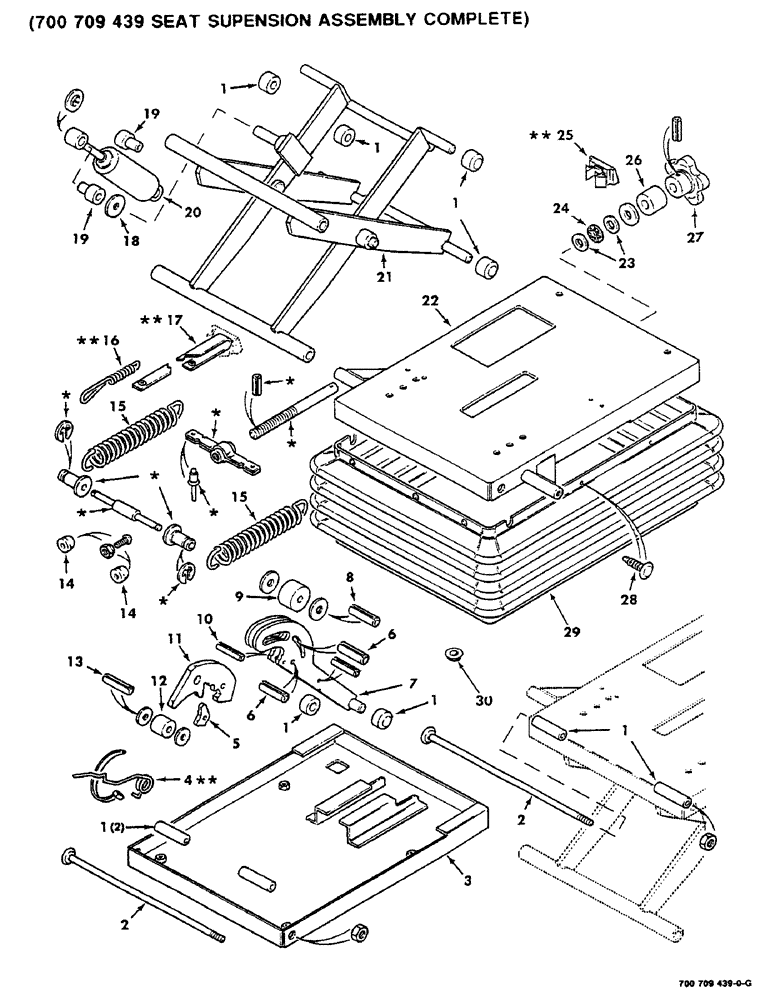

Запчасти Case IH 8830 (7-28) - SEAT SUSPENSION ASSEMBLY, 700709439 SEAT SUSPENSION ASSEMBLY COMPLETE (09) - CHASSIS

700709439

KIT

SUSPENSION ASSEMBLY COMPLETE

1шт.

1

700709072

KIT

- roller & tube bearing

1шт.

2

700711528

SHAFT

- bearing

2шт.

3

700711543

HOUSING

- lower (Superseded by 700708811 and 700709439)

1шт.

4

700711532

SPRING

- height adjustment

1шт.

5

700711533

LATCH

1шт.

6

700712450

PIN

3/8 X 1.56 PIN - special

2шт.

7

700711529

ARM ASSY.

ARM - suspension (Superseded by 700708811 and 700709439)

1шт.

8

63156

LOCK PIN,5/16" x 1 1/4", Slotted

1шт.

9

700711542

CAM

FOLLOWER

1шт.

10

763623

PIN, ROLL

5/32 X 3/4 SLOTTED SPRING PIN

1шт.

11

700711530

CAM

1шт.

12

700711526

CAM

BEARING - cam follower

1шт.

13

63255

LOCK PIN,3/16" x 3/4", Slotted

Pin, 3/16" x 3/4", Slotted

1шт.

14

700710439

BUMPER

2шт.

15

700709046

KIT

SPRING EXTENSION KIT

1шт.

16

700711541

SPRING

- weight adjust (Superseded by 700712456)

1шт.

17

700711540

WEIGHT

TAPE - weight adjust (Superseded by 700712456)

1шт.

18

700711537

WASHER

- plastic

1шт.

19

700709504

BEARING

- shock

2шт.

20

700709073

KIT

- shock absorber

1шт.

21

700711527

ARM

SUSPENSION ARM

1шт.

22

700711546

HOUSING

- upper

1шт.

23

700711538

RACE

THRUST RACE

2шт.

24

700711534

BEARING

- thrust

1шт.

25

700711539

GUIDE

- weight adjuster (Superseded by 700712456)

1шт.

26

700711548

SPACER

1шт.

27

700711547

KIT

KNOB KIT - weight adjusting

1шт.

28

700713647

KIT

PINS (Packaged 25 per bag)

1шт.

29

700709445

BOOT

ASSEMBLY - suspension (With pins)

1шт.

30

700711545

CUP WASHER

WASHER - cup

4шт.

31

700711536

KIT

WEIGHT ADJUSTER KIT, Includes items in art marked with asterisk

1шт.

32

700712456

KIT

SERVICE KIT, Includes items in art marked with asterisk

1шт.
