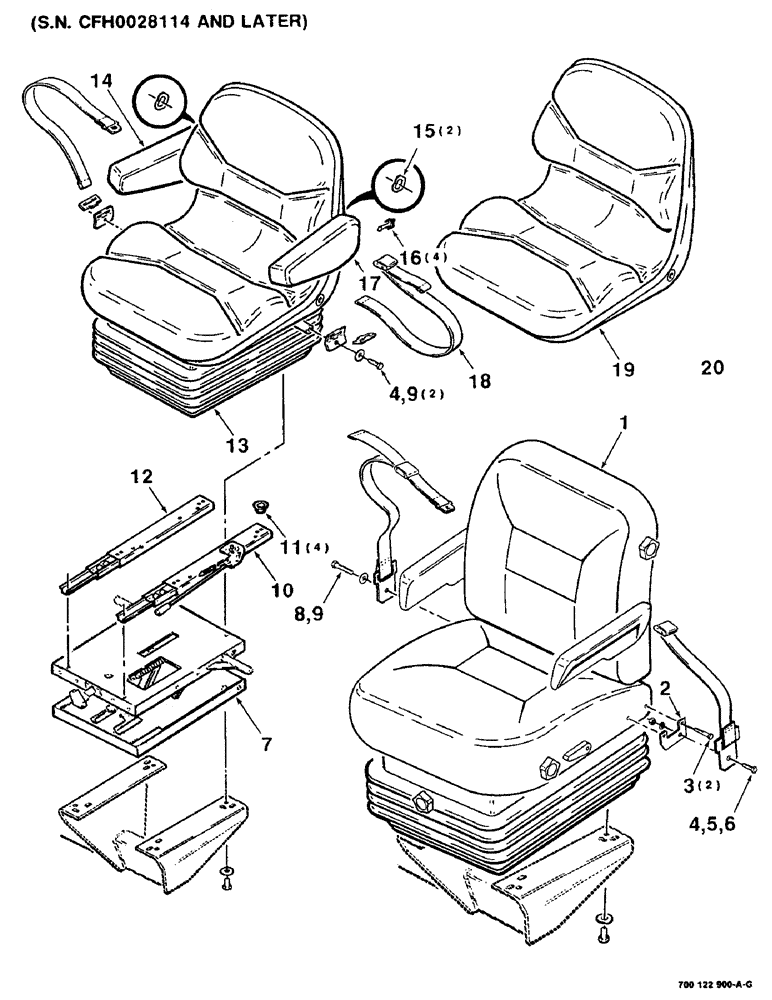

Запчасти Case IH 8830 (7-26) - SEAT ASSEMBLY, SERIAL NUMBER CFH0028114 AND LATER (09) - CHASSIS

1

700709403

DRIVER SEAT

SEAT ASSEMBLY COMPLETE - cloth (Superseded by 700709662)

1шт.

700709662

SEAT

ASSEMBLY COMPLETE - cloth (Superseded by 700122900)

1шт.

700122900

SEAT

ASSEMBLY COMPLETE - cloth

1шт.

2

700710268

BRACKET

- seat belt, left

1шт.

3

7703945

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 C

2шт.

4

771501

BOLT,Hex, 7/16" - 20 x 1", Gr 5

7/16-20 X 1 C

3шт.

5

700702206

LOCK WASHER

7/16 L

1шт.

6

704296

NUT

7/16-20 H

1шт.

7

700709439

KIT

SUSPENSION ASSEMBLY COMPLETE

1шт.

8

7701162

BOLT,Hex, 7/16" - 20 x 2", Gr 5

7/16-20 X 2 C

1шт.

9

705558

WASHER

7/16 HARDENED PLAIN WASHER

3шт.

10

700709440

SLIDE

ASSEMBLY - handle, left

1шт.

11

700711545

CUP WASHER

WASHER - cup

4шт.

12

700709441

SLIDE

ASSEMBLY - right

1шт.

13

700709404

DRIVER SEAT

SEAT ASSEMBLY COMPLETE - vinyl

1шт.

14

700709443

ARMREST

ARM REST ASSEMBLY - right

1шт.

15

700709446

WASHER

- spring

2шт.

16

700711575

SCREW

5/16-18 X 1/2 BUTTON HEAD SOCKET BOLT

4шт.

17

700709442

ARMREST

ARM REST ASSEMBLY - left

1шт.

18

741033

SAFETY BELT

SEAT BELT ASSEMBLY

1шт.

19

700709438

SEAT

ASSEMBLY (Without arm rests)

1шт.

20

700708812

SEAT CUSHION

KIT

1шт.
