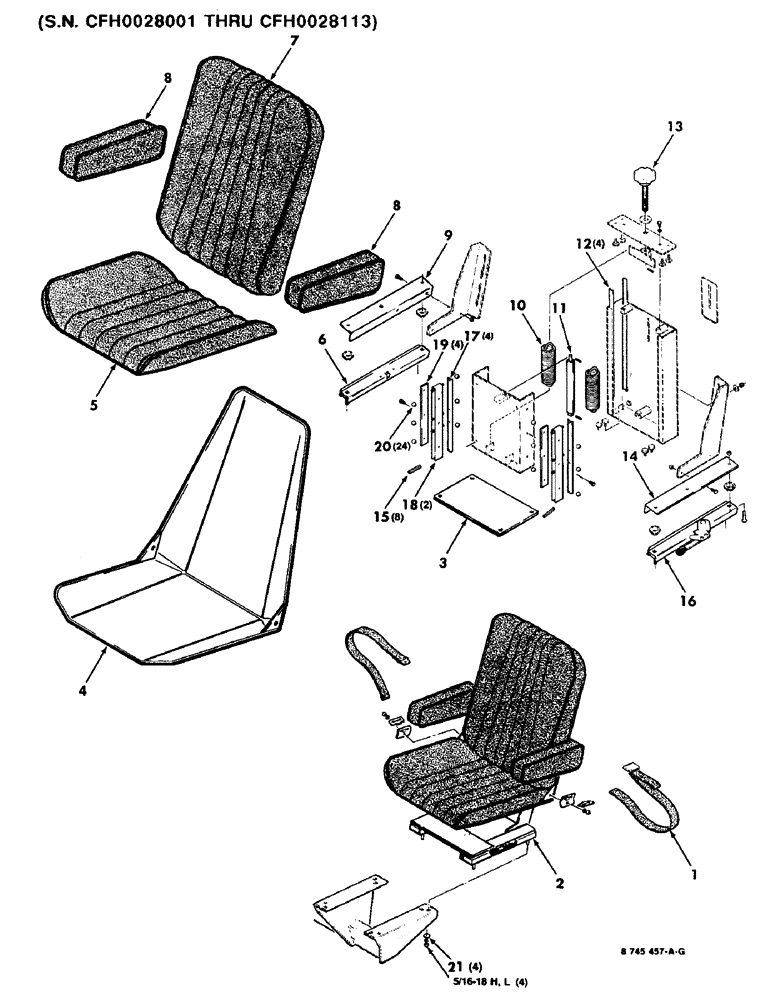

Запчасти Case IH 8830 (7-24) - SEAT ASSEMBLY, SERIAL NUMBER CFH0028001 THRU CFH0028113 (09) - CHASSIS

1

741033

SAFETY BELT

SEAT BELT ASSEMBLY

1шт.

2

8745457

SEAT

ASSEMBLY COMPLETE (Cloth)

1шт.

700707347

SEAT/SLOT

SEAT ASSEMBLY COMPLETE (Vinyl)

1шт.

3

1700251

PLATE

- brace

1шт.

4

1700327

FRAME

- seat, bucket

1шт.

5

8803488

CUSHION

SEAT CUSHION - lower (Cloth)

1шт.

700707348

SEAT CUSHION

- lower (Vinyl)

1шт.

6

700705714

RAIL

- slide, right

1шт.

700711731

RAIL

TRACK ASSEMBLY (Left and right)

1шт.

7

8803496

CUSHION

SEAT CUSHION - upper (Cloth)

1шт.

700707350

SEAT CUSHION

- upper (Vinyl)

1шт.

8

8803470

COVER

ARM REST COVER

2шт.

9

700705716

SUPPORT

- right

1шт.

10

8803462

SPRING

- tension

2шт.

11

8803454

DAMPER

DAMPENER - seat

1шт.

12

1700301

GUIDE

- ball race

4шт.

13

8803835

KNOB

- adjustable

1шт.

14

700705718

SUPPORT

- left

1шт.

15

1700319

PIN

SLOTTED SPRING PIN

8шт.

16

700705717

RAIL

- locking, left

1шт.

700711731

RAIL

TRACK ASSEMBLY (Left and right)

1шт.

17

1700293

RACE

- slide, ball

4шт.

18

1700277

BAR

- slide

2шт.

700709422

BAR

- slide

2шт.

19

1700285

SPACER

- slide

2шт.

20

7845738

BALL BEARING

BALL - slide

24шт.

21

705525

WASHER

5/16 HARDENED PLAIN WASHER

4шт.
