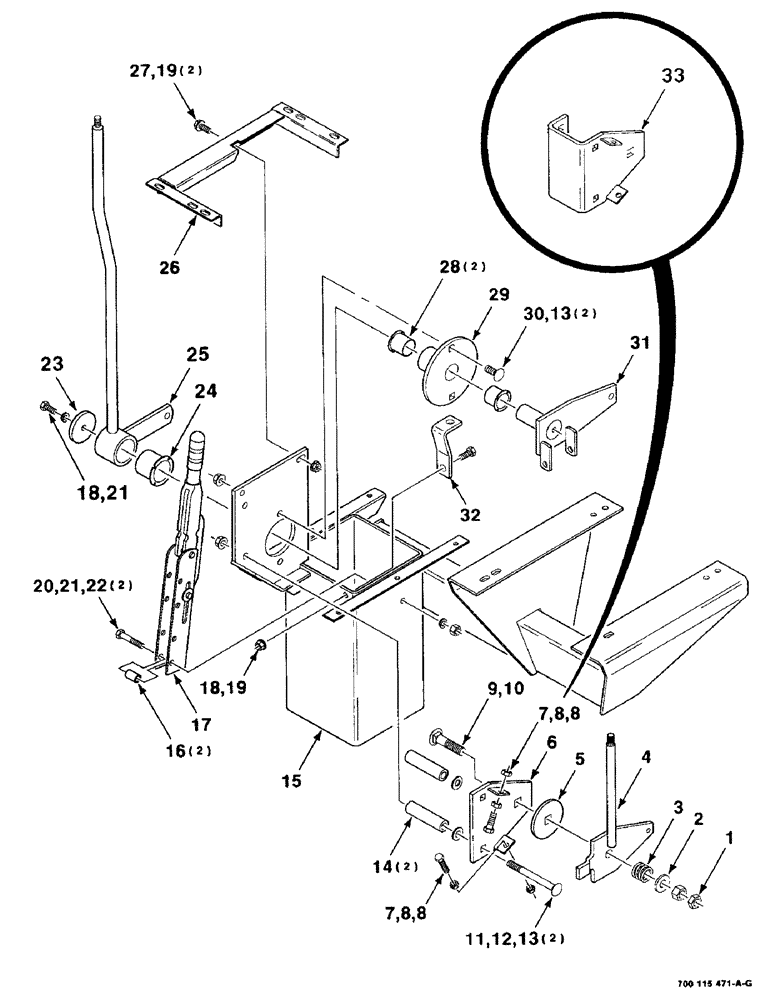

Запчасти Case IH 8830 (7-22) - CONTROLS ASSEMBLY, OPERATORS (09) - CHASSIS

1

704056

NUT

1/2-13 HEX JAM NUT

1шт.

2

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

3

58024

SPRING

- compression

1шт.

4

700111019

LEVER

WA

1шт.

5

700711026

DISC

- friction (S.N. CFH0028001 thru CFH0028558)

1шт.

700711026

DISC

- friction (S.N. CFH0028559 and later)

1шт.

6

700114951

SUPPORT

MOUNTING WA - lever (S.N. CFH0028559 and later)

1шт.

7

700705617

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 FTC

2шт.

8

704478

GEAR

5/16-18 HEX JAM NUT

4шт.

9

7770704

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

10

86516876

COVER

1/2-13 H

1шт.

11

700872

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 RHSNB

2шт.

12

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

13

704247

NUT

3/8-16 HFSLN

4шт.

14

700116062

SPACER

(S.N. CFH0028559 and later)

2шт.

15

700111038

HOUSING

MOUNTING WA - controls

1шт.

16

6606966

SPACER

2шт.

17

7020548

BRAKE LEVER

LEVER ASSEMBLY - parking brake

1шт.

18

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

2шт.

19

704239

FRONT AXLE

5/16-18 HFSLN

3шт.

20

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 X 1-3/4 C

2шт.

21

705020

LOCK WASHER

5/16"

3шт.

22

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

23

6617344

WASHER

WASHER

1шт.

24

700705559

BUSHING

- nylined

1шт.

25

700111026

LEVER

WA

1шт.

26

700111050

FRAME

WA

1шт.

27

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

2шт.

28

700705560

BUSHING

- nylined

2шт.

29

700111023

MOUNTING PLATE

MOUNTING WA

1шт.

30

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

31

700115468

PIVOT

WA

1шт.

32

700111049

ANGLE

1шт.

33

700111014

MOUNTING PLATE

MOUNTING - superseded by items 6 & 14 (S.N. CFH0028001 thru CFH0028558)

1шт.

700114951

SUPPORT

MOUNTING WA - lever (S.N. CFH0028559 and later)

1шт.

700116062

SPACER

(S.N. CFH0028559 and later)

2шт.
