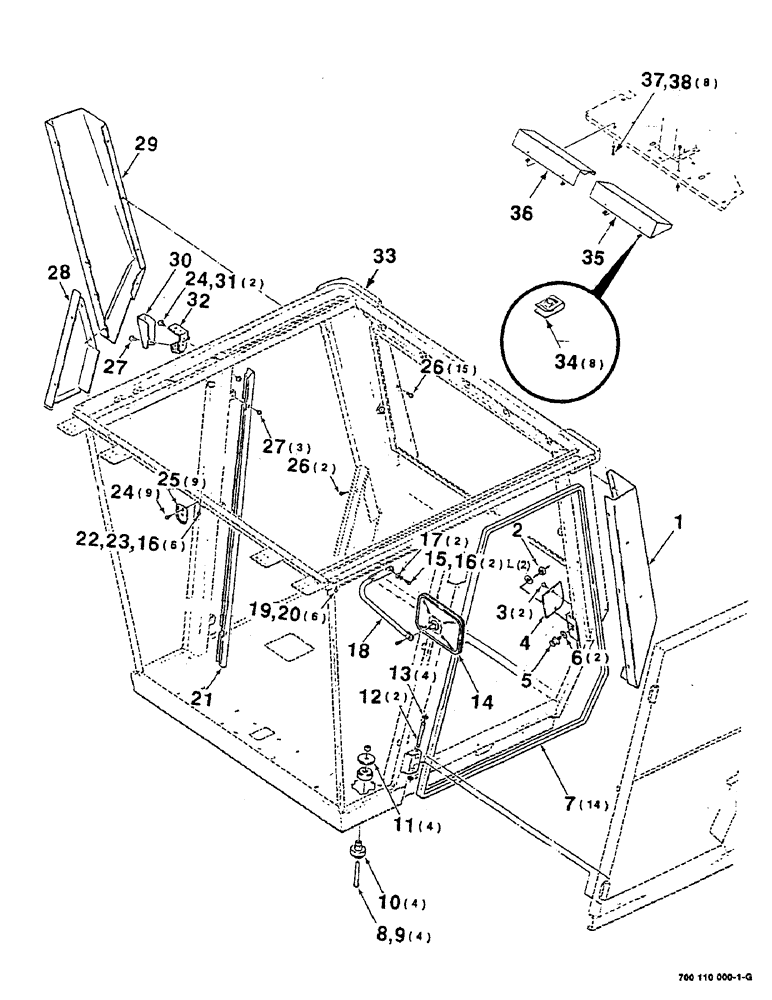

Запчасти Case IH 8825HP (07-04) - CAB FRAME ASSEMBLY (09) - CHASSIS

1

700110102

SHIELD

- rear, left

1шт.

2

425-107

NUT,7/16"-14, G5

1шт.

3

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

2шт.

4

700110105

COVER PLATE

PLATE - cover

1шт.

5

700704801

BOLT,Striker, 7/16" - 14 x 1.715"

STRIKER BOLT

1шт.

6

495-11047

WASHER,7/16", SAE

2шт.

7

8025546

DOOR SEAL

- door (15 Foot bulk)

14шт.

8

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

A141451

SHOCK ABSORBER

MOUNT - rubber (S.N. CFH127001 thru CFH127599)

4шт.

700716101

RUBBER SLEEVE

MOUNT - rubber (S.N. CFH127600 and later)

4шт.

11

NLS

NO LONGER SERVICED

4шт.

12

700110095

PIN

- hinge

2шт.

13

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

4шт.

14

L74714

MIRROR

- rear view

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

17

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

18

700117840

SUPPORT

MOUNTING - mirror

1шт.

19

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

6шт.

20

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

21

700110109

SHIELD

- post, right

1шт.

22

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

6шт.

23

425-104

NUT,1/4"-20, Cl 5

6шт.

24

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

11шт.

25

700122540

CLIP

- grass retainer

9шт.

26

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS

17шт.

27

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

4шт.

28

700110107

PANEL

- lower, right

1шт.

29

700110099

SHIELD

- rear, right

1шт.

30

700110151

MOUNTING PLATE

COVER - mounting, antenna

1шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

32

700110150

MOUNTING PLATE

MOUNTING - antenna

1шт.

33

700110006

FUNNEL

FRAME WA - cab

1шт.

34

74740

NUT

SPEED NUT

8шт.

35

700110110

SUPPORT

- left

1шт.

36

700110111

SUPPORT

- right

1шт.

37

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

1/4-20 X 1-1/4 HWHMS

8шт.

38

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

8шт.
