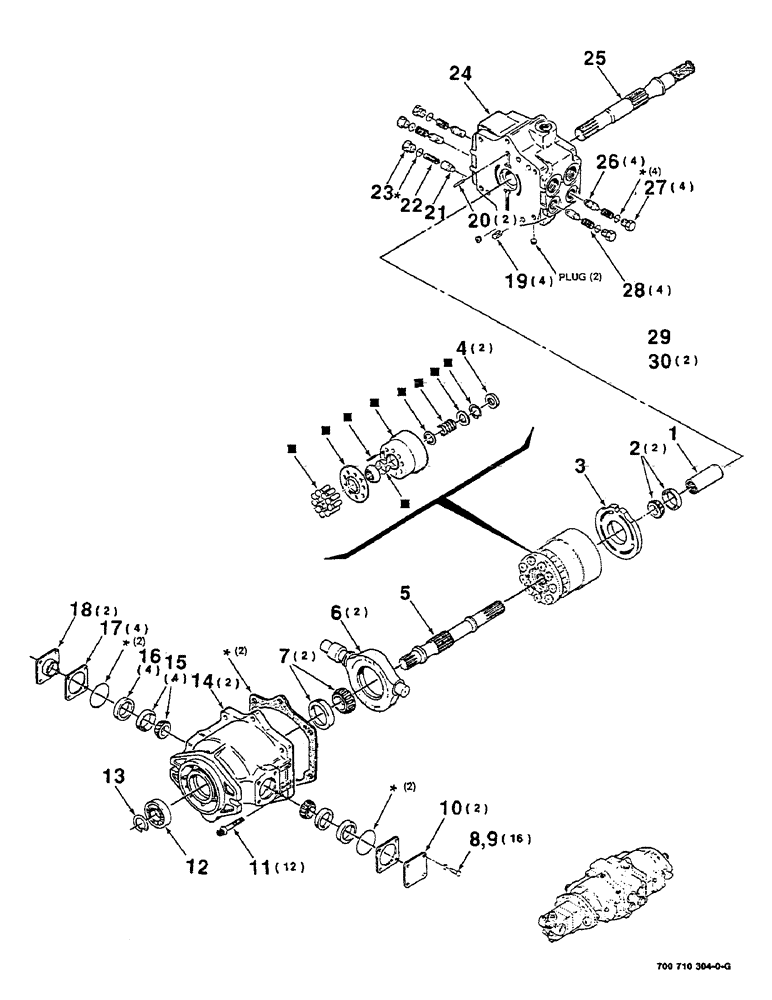

Запчасти Case IH 8825HP (08-30) - TRANSMISSION TANDEM PUMP ASSEMBLY, HYDROSTATIC, 700710304 TANDUM PUMP ASSEMBLY COMPLETE (08) - HYDRAULICS

700710304

HYDRAULIC PUMP

HYDROSTATIC TANDEM PUMP COMPLETE (5500PSI)

1шт.

1

N8298

SPLINED COUPLING

COUPLING

1шт.

2

8730046

BEARING SET

BEARING SET

2шт.

3

145593C1

LARGE PLATE

WAFER PLATE - right hand rotation

1шт.

149704C1

LARGE PLATE

WAFER PLATE - left hand rotation

1шт.

4

145582C1

KIT

BEARING SPACER KIT

2шт.

5

8730111

SHAFT

- main input

1шт.

6

N8292

YOKE

2шт.

7

8730053

BEARING SET

BEARING SET

2шт.

8

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

16шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

10

A47288

COVER

- pintle

2шт.

11

380-2624

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

12 - point flanged screw

12шт.

12

700705451

SEAL

SEAL

1шт.

13

8730285

COVER

RETAINING RING

1шт.

14

N8293

HOUSING

2шт.

15

1263241C1

WHEEL BEARING KIT

BEARING SET

4шт.

16

A47286

SPACER

- bearing, pintle

4шт.

17

145590C1

SHIM KIT

4шт.

18

N8294

COVER

- seal, pintle

2шт.

19

A47301

PIN

ROLL PIN

4шт.

20

A47309

PIN

ROLL PIN

2шт.

21

8730152

VALVE POPPET

CHECK VALVE

1шт.

22

149707C1

SPRING

1шт.

23

N8302

PLUG

1шт.

24

N8299

BLOCK

- valve

1шт.

25

149703C1

SHAFT

- intermediate

1шт.

26

700710305

CHECK VALVE

REPLENISHING CHECK & RELIEF VALVE

4шт.

27

1252160C1

PLUG

4шт.

28

N7925

SPRING

4шт.

29

700705452

SEAL KIT

SEAL REPAIR KIT, Includes items in art marked with an Asterisk

1шт.

30

145592C91

KIT

ROTATING GROUP KIT (Includes items in art marked with a square.)

2шт.
