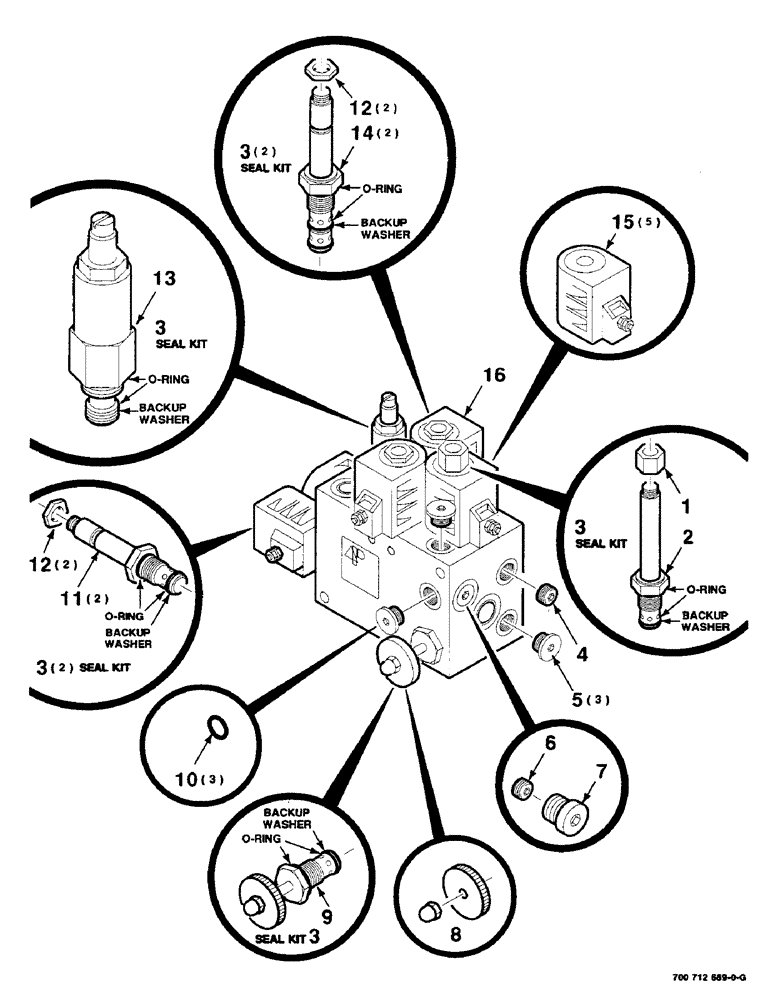

Запчасти Case IH 8825HP (08-26) - CONTROL VALVE ASSEMBLY, HEADER & REEL LIFT, 700712669 CONTROL VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS

1

700712824

NUT

HEX NUT

1шт.

2

700712823

ASSEMBLY

N. O. POPPET VALVE

1шт.

3

700712678

KIT

- seal

7шт.

4

700712829

PLUG

- orifice .109

1шт.

5

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

#4 SAE PLUG (Includes item 10)

3шт.

6

700712827

PLUG

- orifice .060

1шт.

7

700712831

PLUG

#6 SAE PLUG

1шт.

8

700712688

KNOB

KIT - knob and nut

1шт.

9

700712826

VALVE

FLOW CONTROL

1шт.

10

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

3шт.

11

700712822

CARTRIDGE

N. C. POPPET VALVE

2шт.

12

700712821

NUT

HEX NUT

4шт.

13

700712825

VALVE

RELIEF VALVE

1шт.

14

700712819

CARTRIDGE

3W 2P VALVE

2шт.

15

700712820

COIL

- 12 Vdc Sp encap

5шт.

16

700712669

VALVE

- control, complete

1шт.
