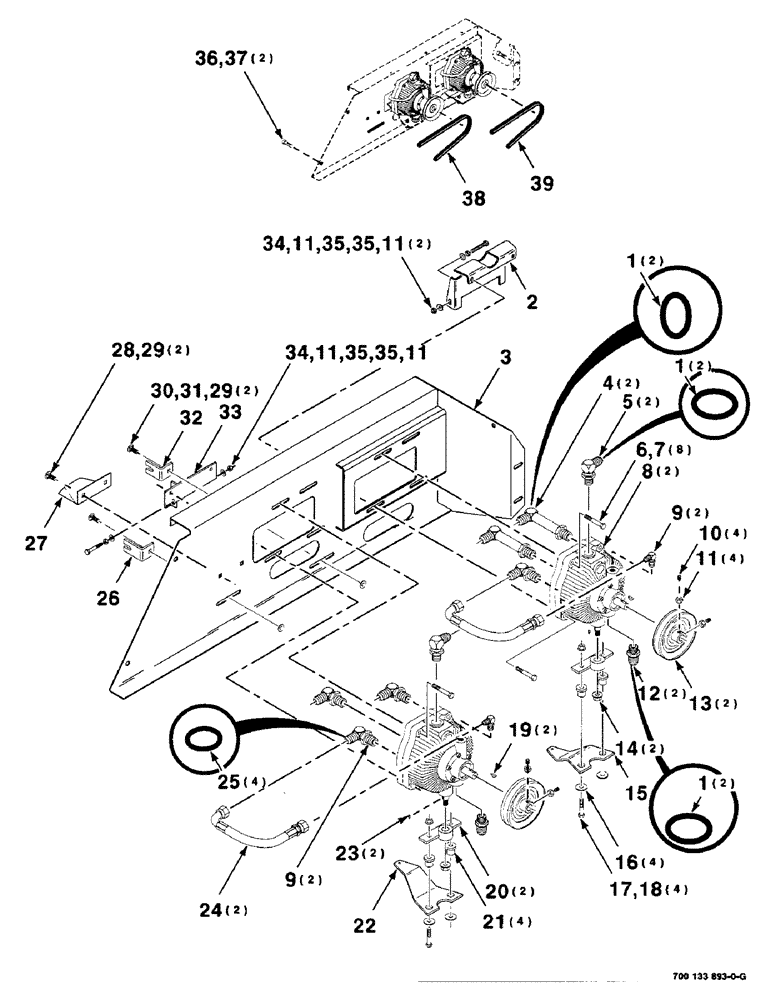

Запчасти Case IH 8825HP (08-20) - HEADER DRIVE PUMP ASSEMBLY, SERIAL NUMBER CFH127001 THRU CFH127599 (08) - HYDRAULICS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

2

700127775

BRACKET

- stop

1шт.

3

700133894

CHANNEL

WA

1шт.

4

700701939

ELBOW

- long 90 degrees (Includes item 1)

2шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 1) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

8шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

8

700709792

HYDRAULIC PUMP

PUMP - variable

2шт.

700709792R

REMAN-HYD PUMP

8825, 8825HP, Both w/S/N CFH127001 Thru CFH127599

2шт.

700709792C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 25)

4шт.

10

83-13112

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3 CPHSSS NP

4шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

10шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short (Includes item 1)

2шт.

13

7053929

SHEAVE

2шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

15

700121115

SUPPORT

ARM - pump

1шт.

16

700111084

WASHER

4шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

18

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

4шт.

19

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

2шт.

20

700121128

BAR

WA

2шт.

21

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

4шт.

22

700121114

ARM

- pump

1шт.

23

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

2шт.

24

700709791

RIGID TUBE

HOSE - hydraulic

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

26

700121112

SUPPORT

- draper, drive

1шт.

27

700121113

SUPPORT

1шт.

28

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

31

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

32

700121110

SUPPORT

- reel, drive

1шт.

33

700121100

STOP

CABLE - stop Wa

1шт.

34

7773930

BOLT

5/16-18 X 2 FTHCS

3шт.

35

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

36

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

37

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

38

857938

V-BELT,0.63" W x 46.50" L

1шт.

39

55111

BELT

V-BELT

1шт.
