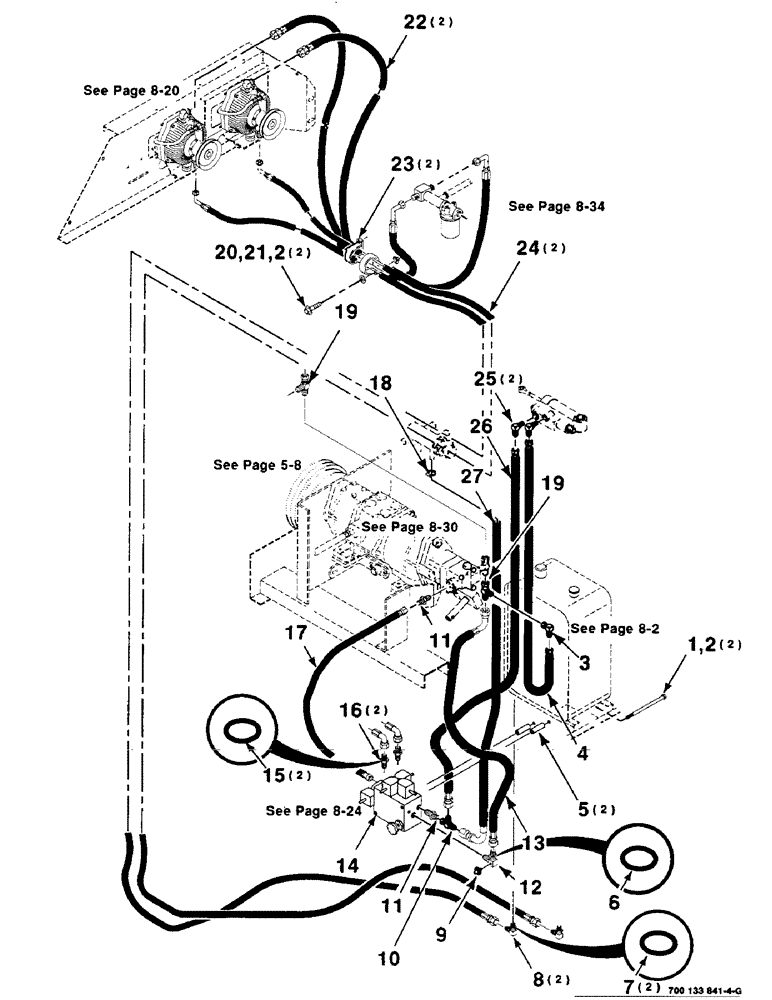

Запчасти Case IH 8825HP (08-18) - HEADER HYDRAULIC PUMPS, SUCTION & RETURN ASSEMBLY, 8825HP ONLY (08) - HYDRAULICS

1

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

5/16-18 X 5-1/2 C

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

3

700707491

ELBOW

- 90 degrees

1шт.

4

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

1шт.

5

6798946

TUBE,10.75 mm ID, 20 mm OD, 50 mm Length

SPACER

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

738484

O-RING

2шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 7) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

9

700706901

PRESSURE SWITCH

SWITCH - pressure

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER

2шт.

12

700115459

ELBOW

90 DEGREE FITTING - elbow (Includes item 6)

1шт.

13

700705573

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

14

700712669

VALVE

ASSEMBLY (Delta)

1шт.

15

738468

O-RING

2шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING (Incl. item 15)

2шт.

17

700705570

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

18

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

1шт.

19

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- hydraulic fitting

2шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

22

700709803

RIGID TUBE

HOSE - hydraulic

2шт.

23

7041015

CLAMP

HOSE CLAMP

2шт.

24

700709802

RIGID TUBE

HOSE - hydraulic

2шт.

25

700707498

ELBOW

- 90 degree, straight thread

2шт.

26

700703840

HOSE

- hydraulic

1шт.

27

700705577

FLEXIBLE HOSE

HOSE - hydraulic

1шт.
