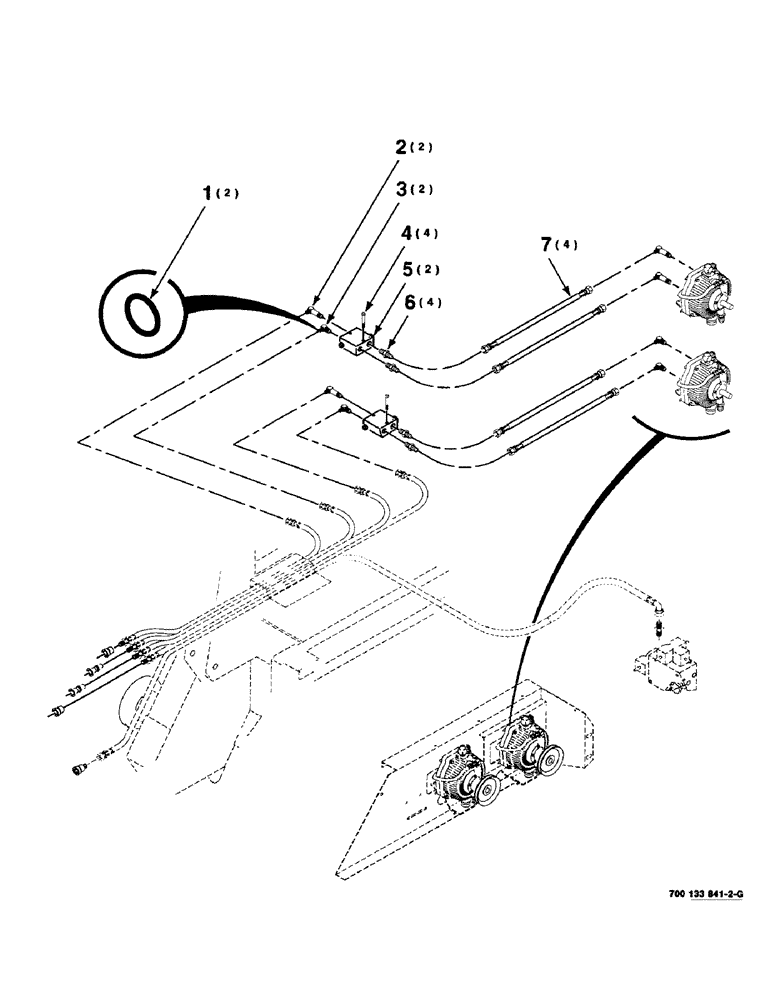

Запчасти Case IH 8825HP (08-14) - HEADER HYDRAULIC DRIVE & VALVE ASSEMBLY, RELIEF (08) - HYDRAULICS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

2

700701939

ELBOW

- long

2шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 1) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

4

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

5

700709812

HYDRAULIC VALVE

VALVE ASSEMBLY - relief

2шт.

6

51200289

FITTING

7/8-14 ORB - 7/8-14 JIC

4шт.

7

700709800

HYDRAULIC HOSE,16.00 mm ID x 1465.00 mm, SAE 100R1

16.00 mm ID x 1465.00 mm, SAE 100R1

4шт.
