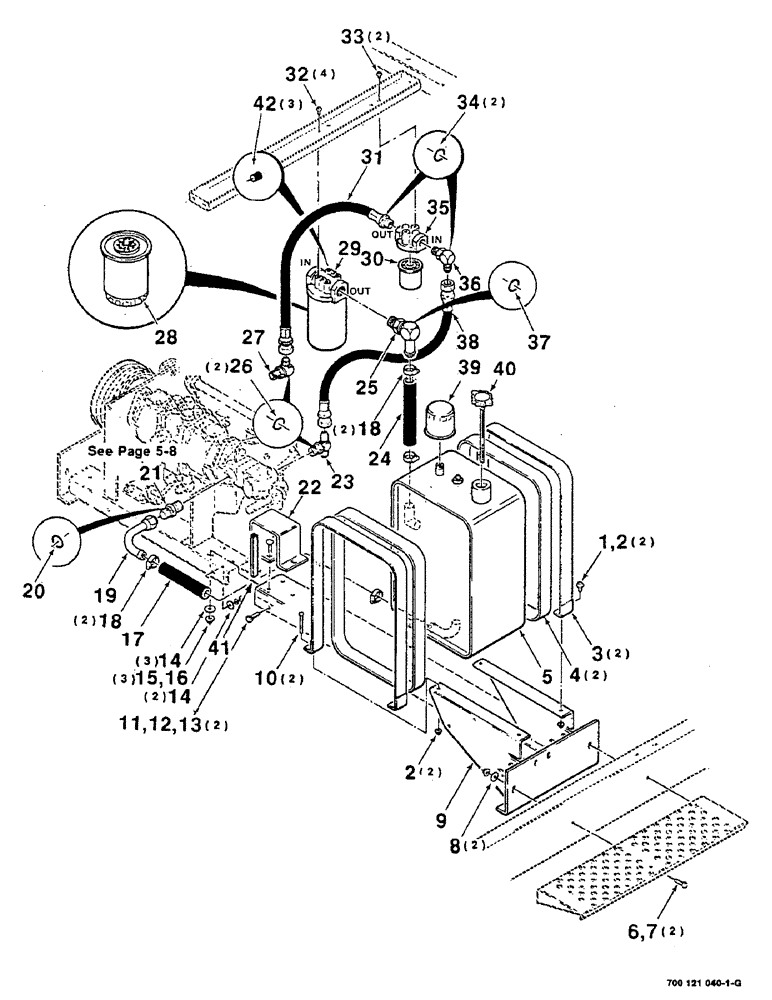

Запчасти Case IH 8825HP (08-02) - HYDRAULIC RESERVOIR ASSEMBLY (08) - HYDRAULICS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

2

231-5146

FLANGE NUT,3/8"-16

4шт.

3

6602445

STRAP

- reservoir

2шт.

4

8044463

LINING

LINER - strap

2шт.

5

700705539

RESERVOIR, HYDRAULIC

TANK - cooler

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

8

700120270

WASHER

- special

2шт.

9

700110893

SUPPORT

- tank

1шт.

10

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

17

8843039

HOSE

- hydraulic

1шт.

18

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

4шт.

19

8843443

LINE

- hydraulic

1шт.

20

738476

O-RING

1шт.

21

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., (Incl. item 20) 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

22

700113675

SHIELD

- retainer

1шт.

23

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Includes item 26)

1шт.

24

7796543

HOSE

- hydraulic

1шт.

25

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Includes item 37

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 26) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

28

7738743

FILTER

ELEMENT KIT

1шт.

29

8042574

FILTER ASSY

FILTER (Includes item 28)

1шт.

30

8040461

FILTER

1шт.

31

8843146

HOSE

- hydraulic (Includes item 34)

1шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

33

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

738484

O-RING

2шт.

35

8843260

FILTER

HEAD - filter

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 34) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

37

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

38

8843054

HOSE

- hydraulic

1шт.

39

7825516

FILTER

1шт.

40

8798456

FILLER CAP

CAP - filter

1шт.

41

700130798

ADHESIVE STRIP

TRIM

1шт.

42

046797

PLUG

3шт.
