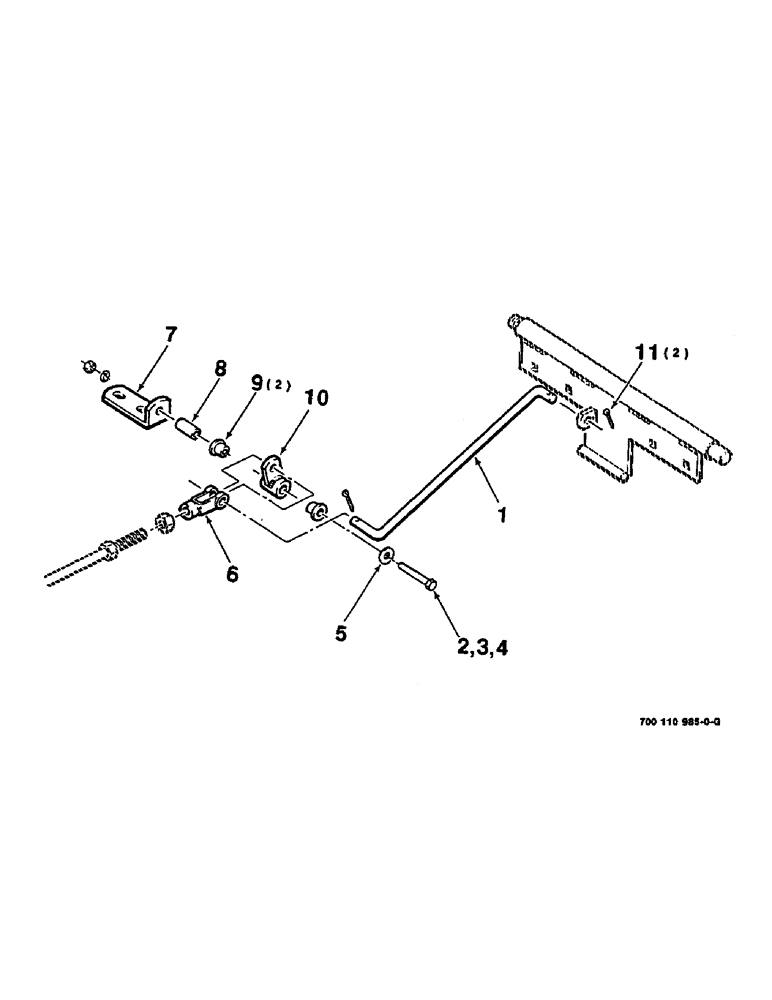

Запчасти Case IH 8825HP (05-14) - BRAKE AND NEUTRAL PIVOT ASSEMBLY (07) - BRAKES

1

700110986

LINK

- rod

1шт.

2

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

425-105

NUT,5/16"-18, G5

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

7

700110987

ANGLE

- mounting

1шт.

8

700110988

BUSHING

1шт.

9

374940R1

NYLON BEARING

BEARING - nylon

2шт.

10

700110989

ARM

- brake

1шт.

11

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.
