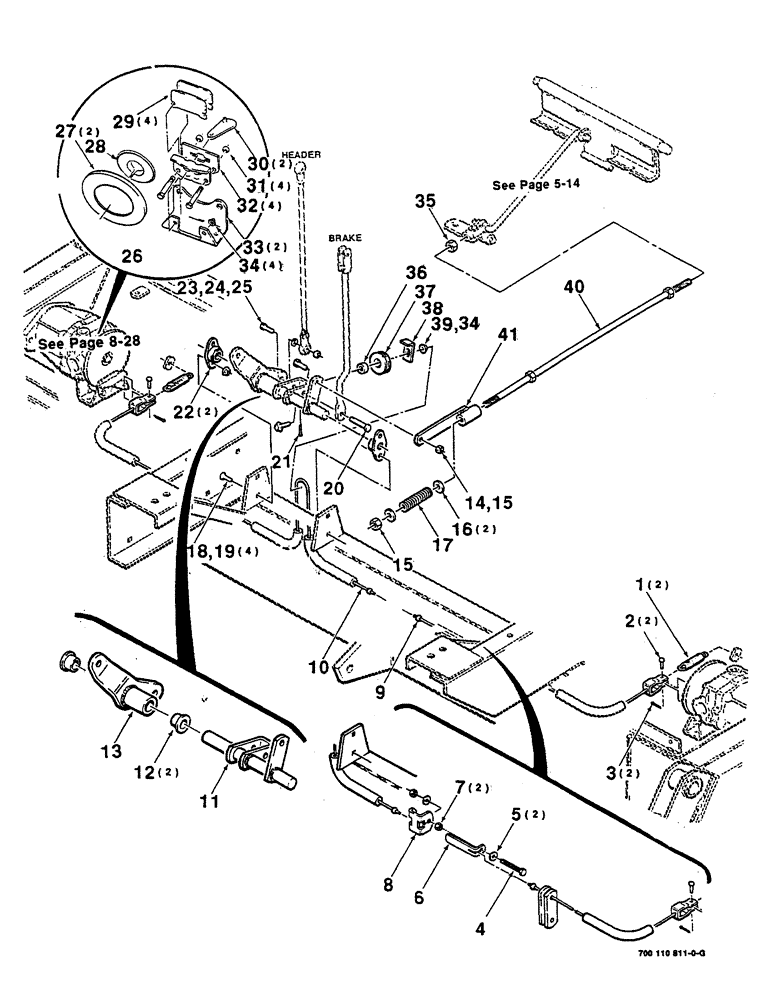

Запчасти Case IH 8825HP (05-12) - BRAKE AND NEUTRAL LOCK ASSEMBLY (07) - BRAKES

1

758508

TENSION SPRING

SPRING - tension

2шт.

2

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, 1/4" x .770"

2шт.

3

32-512

COTTER PIN,5/64" x 3/4"

PIN, SPLIT (COTTER), 5/64" x 3/4"

2шт.

4

7773971

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 FTC

1шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

6

700122760

STRAP

- tension

1шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

700122759

SUPPORT

- tension

1шт.

9

700705518

CABLE

- brake, left

1шт.

10

8020778

CABLE

- brake, right

1шт.

11

700110974

SHAFT

- rocker

1шт.

12

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

BEARING - nylined

2шт.

13

700110978

TUBE

- rocker

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

2шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

17

58578

SPRING

- compression

1шт.

18

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

20

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

22

A63366

SPHERICAL BEARING,19mm ID

BEARING - block

2шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

700715767

BRAKE

ASSEMBLY - right

1шт.

700715768

BRAKE

ASSEMBLY - left

1шт.

27

700133919

DISC

- brake (S.N. CFH127001 thru CFH127599)

2шт.

700147391

DISC

- brake (S.N. CFH127600 and later)

4шт.

28

700134026

HUB

- disc

1шт.

29

H341685

BRAKE PAD

STATOR ASSEMBLY

4шт.

30

7724628

LEVER

ASSEMBLY

2шт.

31

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 GRIP JAM NUT

4шт.

32

7724636

BRACKET

- stator

4шт.

33

700133917

BRACKET

- brake

2шт.

34

231-5146

FLANGE NUT,3/8"-16

5шт.

35

425-116

NUT,3/8" - 24, Gr 5

1шт.

36

6605752

SPACER

1шт.

37

6605737

ROLLER

1шт.

38

6196885

GUIDE

- cable

1шт.

39

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

40

700111000

ROD

- link

1шт.

41

700111158

LINK

STRAP - link

1шт.
