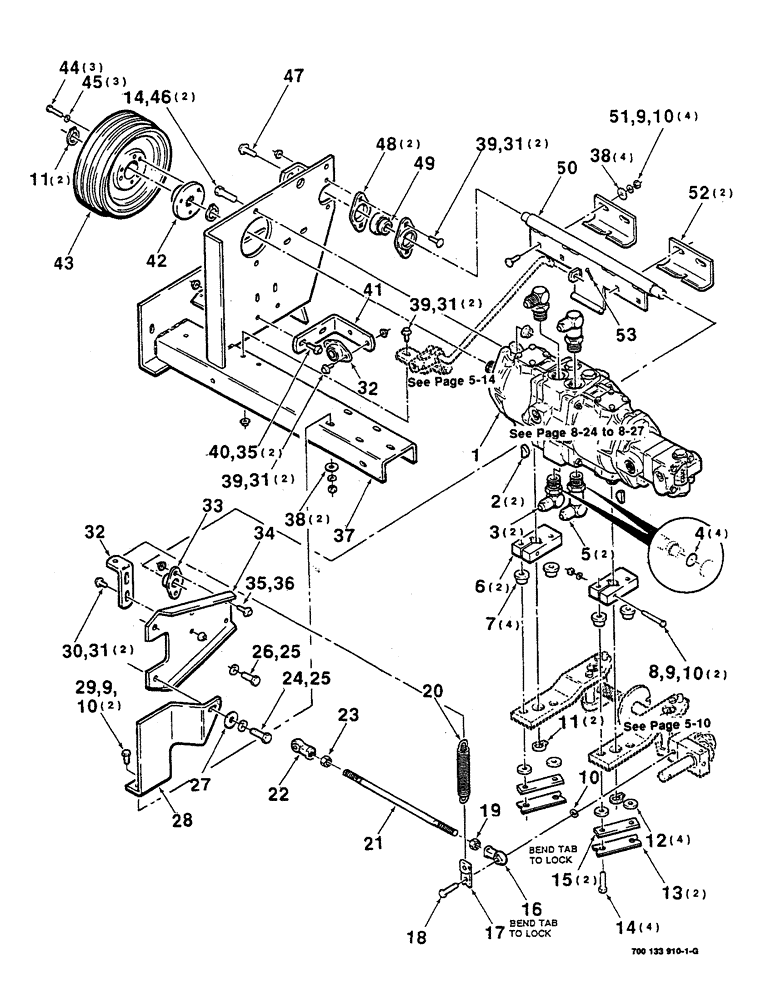

Запчасти Case IH 8825HP (05-08) - TRANSMISSION PUMP MOUNTING AND CONTROL ASSEMBLY (06) - POWER TRAIN

1

700710304

HYDRAULIC PUMP

PUMP - tandem, complete (5500PSI)

1шт.

2

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

2шт.

3

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

(Incl. item 4) 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

4

738476

O-RING

4шт.

5

8046997

ELBOW

90 DEGREE ELBOW (Includes item 4)

2шт.

6

700110910

ARM

- steering

2шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING BUSHING

4шт.

8

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

492-11038

LOCK WASHER,3/8"

9шт.

11

100-1198

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

4шт.

12

700117552

WASHER

4шт.

13

700117551

LOCKING TAB

TAB - locking

2шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

700117550

STRAP

2шт.

16

51383

PIPE,12.7 mm

ROD END - right hand thread

1шт.

17

700111560

LOCKING TAB

TAB - locking

1шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

425-116

NUT,3/8" - 24, Gr 5

1шт.

20

758441

SPRING

- tension

1шт.

21

700111159

ROD

- link

1шт.

22

700705523

SPHERICAL BEARING,9.52 mm ID x 12.7 mm

ROD END - left hand thread

1шт.

23

129-323

SPECIAL NUT,3/8"-24, G5, LH

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

27

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

28

700110948

SUPPORT

- pump, left front

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

32

700111002

BRACKET

MOUNTING - spring

1шт.

33

A63366

SPHERICAL BEARING,19mm ID

FLANGE BEARING

2шт.

34

700110998

SUPPORT

- pump, left rear

1шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

36

231-5146

FLANGE NUT,3/8"-16

4шт.

37

700110886

MOUNTING PLATE

MOUNTING - channel, right

1шт.

38

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

39

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

40

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

41

700111156

SUPPORT

ANGLE - support

1шт.

42

700110941

HUB

- sheave

1шт.

43

700110946

PULLEY

SHEAVE - 3-groove

1шт.

44

700705614

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 X 1-1/2 FTC

3шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

46

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

47

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2-13 X 1 HFSS

1шт.

48

469924R1

FLANGE

BEARING

2шт.

49

711762

SPHERICAL BEARING,19.05 mm ID x 47 mm OD x 30.96 mm

BEARING - spherical, less collar

1шт.

50

700110992

SHAFT

- rocker

1шт.

51

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

52

700110997

LATCH

2шт.

53

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.
