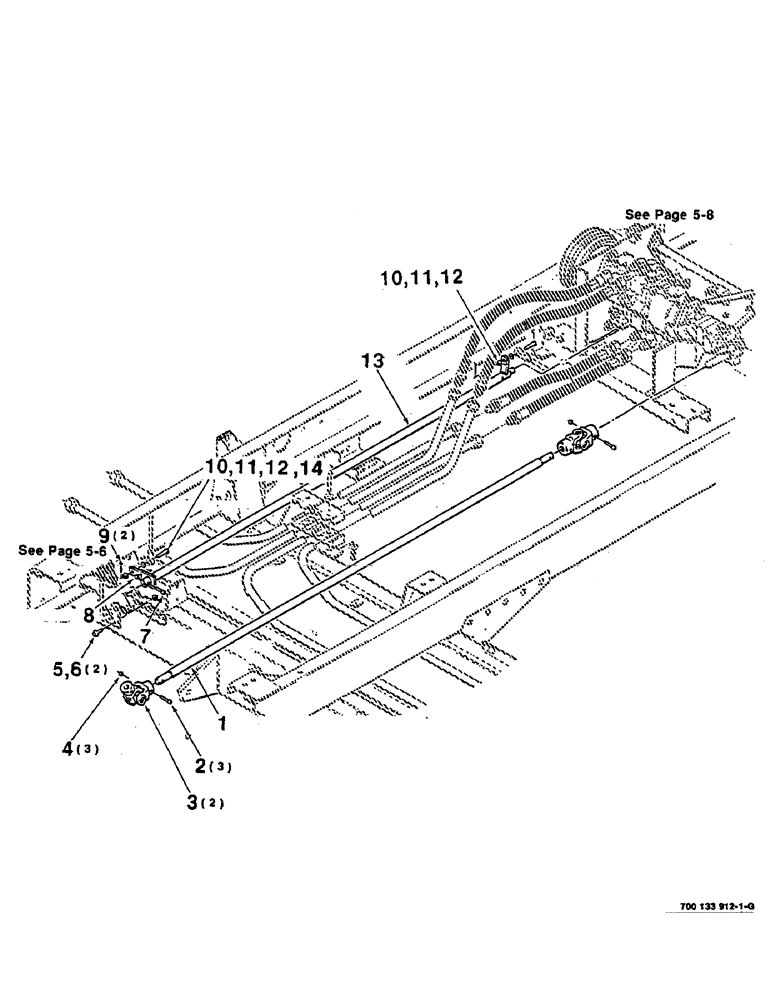

Запчасти Case IH 8825HP (05-16) - STEERING AND SPEED CONTROL ARMS (05) - STEERING

1

700111125

RIGID TUBE,2144 mm Length

PIPE - steering

1шт.

2

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

5/16-18 X 1-1/2 HSHCS SPECIAL

3шт.

3

700705553

UNIVERSAL JOINT

U-JOINT ASSEMBLY

2шт.

4

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

3шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS SPECIAL

1шт.

8

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/C

1шт.

9

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

10

700149590

BOLT

3/8-16 X 1-3/4 C, special

2шт.

11

700710049

WASHER

3/8 FENDER WASHER

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

700111006

ROD

- control, speed (S.N. CFH127001 thru CFH127599)

1шт.

700147386

ROD

- control, speed (S.N. CFH127600 and later)

1шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.
