Запчасти Case IH 8825HP (04-14) - C0NTROL PANEL ASSEMBLY, ELECTRICAL (04) - ELECTRICAL SYSTEMS

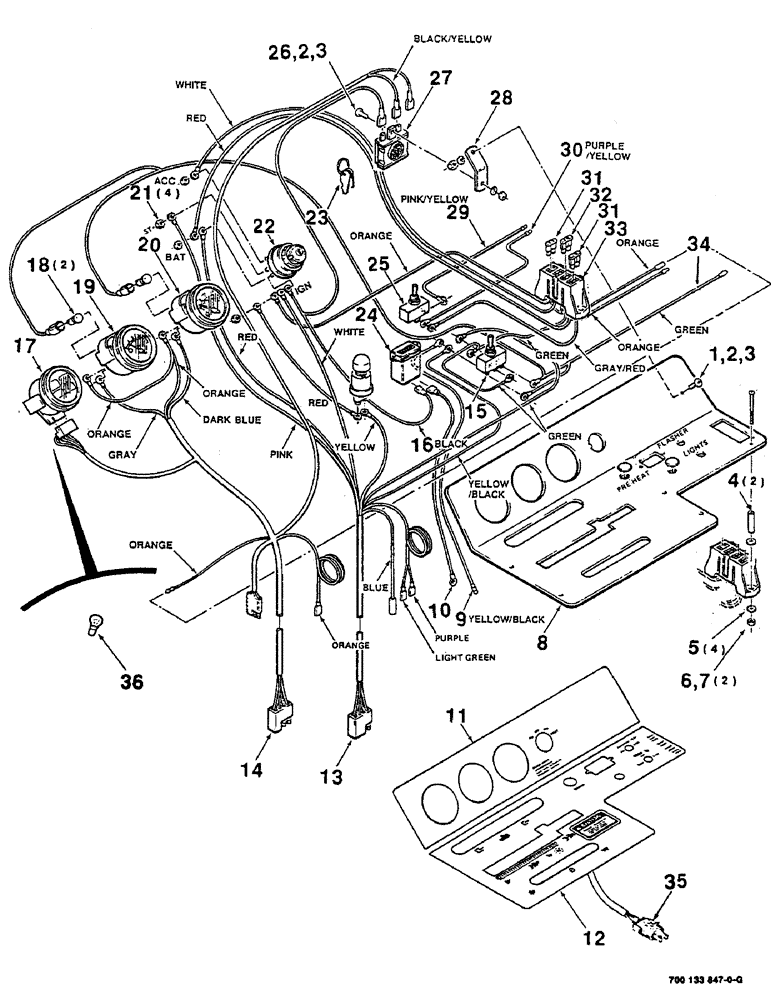

Схема запчастей Case IH 8825HP - (04-14) - C0NTROL PANEL ASSEMBLY, ELECTRICAL (04) - ELECTRICAL SYSTEMS
32
23
9
29
30
3
2
33
12
13
27
25
1
24
22
7
26
31
11
17
4
21
5
15
16
35
34
6
28
14
3
18
20
8
2
31
36
10
19

Артикул

Название

Примечание

Количество

1

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

2

225-14110

NUT,#10-24

2шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

5/16 X 1-1/4 SSP

2шт.

5

27616R1

WASHER,.281" x 5/8" x .075", HDN

#12 PLAIN WASHER

4шт.

6

700710346

SCREW

#12-24 X 2 CRPHMS

2шт.

7

225-14112

NUT,#12-24

#12-24 H GR2

2шт.

8

700133906

PANEL

- console

1шт.

9

700705658

WIRE HARNESS

WIRE - electrical

1шт.

10

700705661

WIRE HARNESS

WIRE - electrical

1шт.

11

700707785

DECAL

- panel, console

1шт.

12

700715407

DECAL

- panel, console

1шт.

13

700705666

WIRE HARNESS

HARNESS - wiring

1шт.

14

700705664

WIRE HARNESS

HARNESS - wiring

1шт.

15

700706897

SWITCH

1шт.

16

700705662

WIRE HARNESS

WIRE - electrical

1шт.

17

700705644

LEVEL GAUGE CONTROL

GAUGE - indicator light

1шт.

18

B50213

BULB

LAMP

2шт.

19

8022022

FUEL GAUGE

GAUGE - fuel

1шт.

20

700705645

LEVEL GAUGE

GAUGE - temperature

1шт.

21

225-14210

NUT,#10-32

4шт.

22

D75657

SWITCH

- starter

1шт.

23

700712801

KEY

- ignition

1шт.

24

L107631

METER

HOUR METER

1шт.

25

700706896

SWITCH

1шт.

26

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

1шт.

27

700705642

BUZZER

1шт.

28

700111196

MOUNTING PLATE

MOUNTING - buzzer

1шт.

29

700706886

WIRE

- electrical

1шт.

30

700706885

WIRE

- electrical

1шт.

31

A149800

FUSE,10 Amp

2шт.

32

A149804

FUSE

1шт.

33

700710348

FUSE HOLDER

FUSE BOX - harness

1шт.

34

700706888

WIRE HARNESS

HARNESS - wiring

1шт.

35

700713815

HARNESS

- wire

1шт.

36

700717999

KIT

BULB AND SOCKET KIT

1шт.

Выбрано товаров: 36
