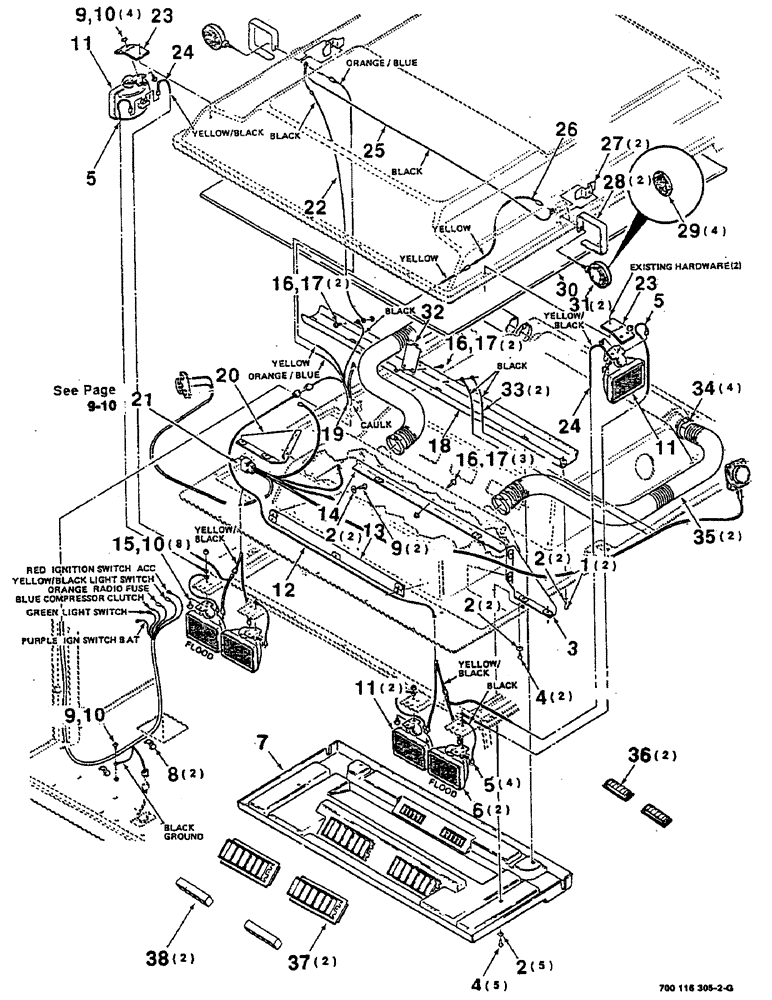

Запчасти Case IH 8825HP (04-12) - CAB BLOWER, LIGHTS AND WIRING ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
5/16-18 X 1/2 C
2шт.
2
495-61034
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
5/16 WIDE PLAIN WASHER
11шт.
3
700110129
SUPPORT
- left
1шт.
4
121-108
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
5/16-18 X 1 HWHMS
7шт.
5
700705124
WIRE
- electrical
6шт.
6
700705183
HEADLAMP
HEADLIGHT - flood
2шт.
7
700121359
COVER
(Includes items 36, 37 & 38) (S.N. CFH127001 thru 127599)
1шт.
700149634
COVER
(Includes items 36, 37 & 38) (S.N. CFH127600 and later)
1шт.
8
7745193
CLIP
2шт.
9
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
7шт.
10
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
13шт.
11
700705184
WORK LAMP
HEADLIGHT
4шт.
12
700706890
WIRE HARNESS
HARNESS - wiring
1шт.
13
700110127
STRAP
1шт.
14
700115093
SUPPORT
ANGLE - support
1шт.
15
121-133
SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
8шт.
16
7883275
SCREW,Hex Washer, 1/4" - 20 x 3/4"
1/4-20 X 3/4 HWHMS
7шт.
18
700110145
SUPPORT
CHANNEL - support
1шт.
19
700706891
WIRE HARNESS
HARNESS - wiring
1шт.
20
700110132
SUPPORT
- right
1шт.
21
700712487
HARNESS
- radio
1шт.
22
700705123
WIRE
- electrical
1шт.
23
700116669
PLATE
- light mounting
2шт.
24
700707560
WIRE HARNESS
WIRE - electrical
2шт.
25
700705143
WIRE
- electrical
1шт.
26
700705121
WIRE
- electrical
1шт.
27
700117856
REINFORCEMENT
- light
2шт.
28
700110126
SHIELD
- flasher light
2шт.
29
700711749
LENS
- flasher
4шт.
30
700705148
ROOF LINING
COVER - foam
1шт.
31
700708036
SIDE LAMP ASSY
LIGHT - flasher (Includes item 31)
2шт.
32
700124527
SUPPORT
- radio
1шт.
33
700705125
WIRE
- electrical
2шт.
34
214-1448
HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm
CLAMP
4шт.
35
700705136
HOSE
- air ducting
2шт.
36
7807753
ASSEMBLY
LOUVER
2шт.
37
7793649
VENTILATOR
LOUVER
2шт.
38
700705792
VENTILATOR
LOUVER
2шт.
Выбрано товаров: 39
