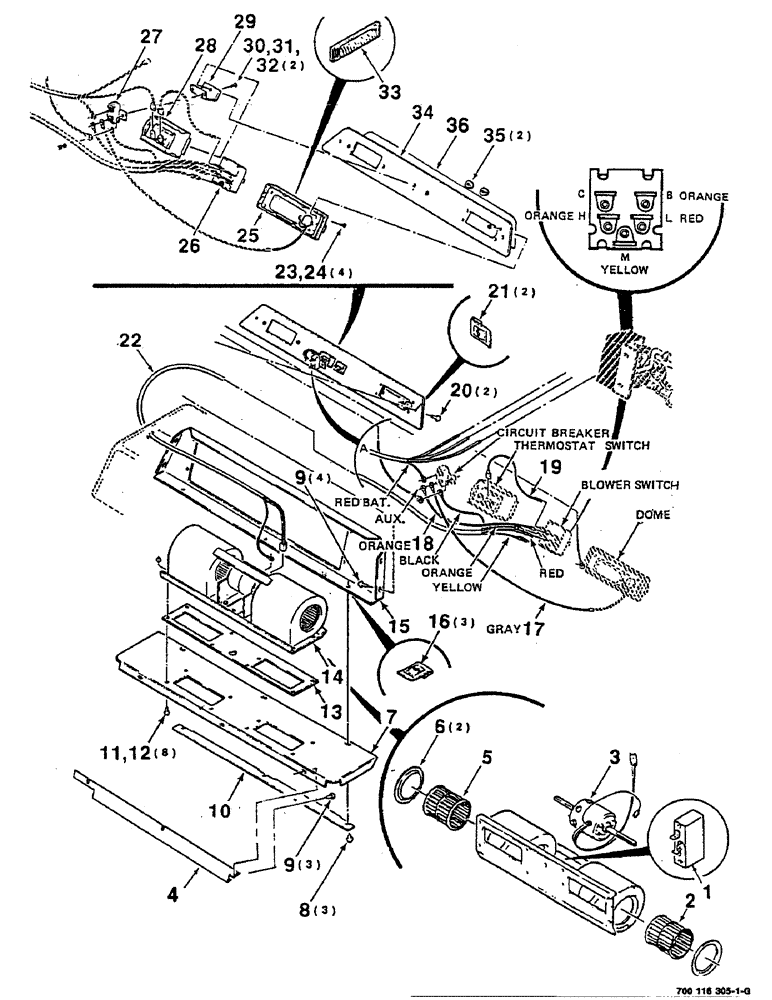

Запчасти Case IH 8825HP (04-10) - CAB BLOWER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

1255876C1

RESISTOR

1шт.

2

7025869

BLOWER

WHEEL - left

1шт.

3

700713942

MOTOR

- blower

1шт.

4

700149636

SUPPORT

WA - upper

1шт.

5

7025877

BLOWER,Fan

BLOWER WHEEL - right

1шт.

6

1344175C1

RETAINER

RING - inlet

2шт.

7

700110136

COVER

- blower

1шт.

8

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

10

700115094

RETAINER

1шт.

11

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4-20 X 3/4 HFSS

8шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

13

8020273

SEAL

- blower

1шт.

14

700710548

FAN

BLOWER ASSEMBLY (Includes items 1 thru 6)

1шт.

15

700110135

BULKHEAD

- evaporator

1шт.

16

131-97

SPRING NUT,Tinn, U, 5/16"-18

5/16-18 SPEED NUT

3шт.

17

700705122

WIRE

- electrical

1шт.

18

700705126

WIRE

- electrical

1шт.

19

8799462

ELECTRICAL WIRE

WIRE - electrical

1шт.

20

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

21

700705135

NUT

1/4-20 SPEED NUT

2шт.

22

700710547

WIRE HARNESS

HARNESS - wire

1шт.

23

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

6-32 X 3/8 CRPHMS

4шт.

24

225-14106

NUT,#6-32

4шт.

25

8020562

LAMP

DOMELIGHT (Includes item 33)

1шт.

26

245258A1

ROTARY SWITCH

- blower

1шт.

27

7025653

CIRCUIT-BREAKER

BREAKER - circuit

1шт.

28

8022337

SWITCH

- thermostat

1шт.

29

700110144

MOUNTING PLATE

MOUNT - circuit

1шт.

30

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

2шт.

31

225-14110

NUT,#10-24

2шт.

32

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

33

8022816

SWIVEL CONNECTION

BEZEL AND LENS

1шт.

34

700124526

PANEL

- conditioner control w/decal

1шт.

35

539024R1

KNOB

- control

2шт.

36

700712488

DECAL

- panel

1шт.
