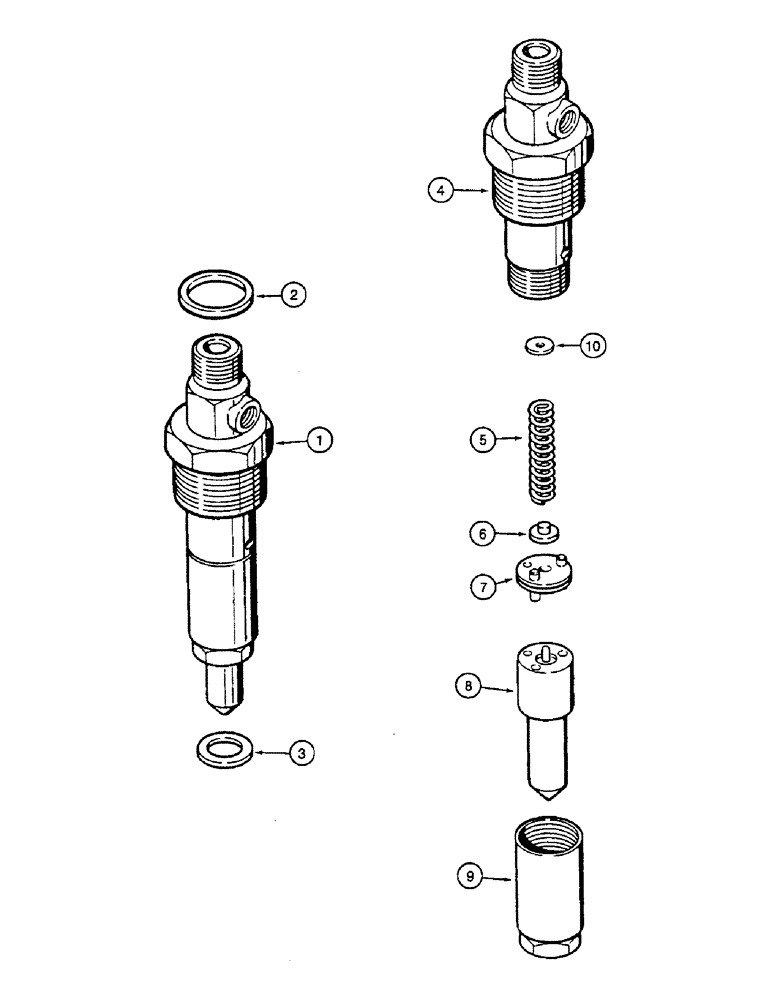

Запчасти Case IH 8825HP (10-70) - FUEL INJECTION NOZZLE, 4-390 EMISSIONS CERTIFIED ENGINE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J930573

INJECTOR ASSY.

NOZZLE - fuel injection, 4-390 engine

4шт.

1

JR930573

REMAN-FUEL INJECTOR

ASSEMBLY - fuel injection, component parts shown on this page do not apply to the remanufactured assembly, 4-390 engine

4шт.

1

JC930573

CORE-FUEL INJECTOR

Return Number, use this part number to return nozzle assembly core for credit when using a remanufactured assembly, 4-390 engine

4шт.

1

J929490

NOZZLE INJECTION

ASSEMBLY - fuel injection, 4T-390 engine

4шт.

1

JR929490

REMAN-FUEL INJECTOR

ASSEMBLY - fuel injection, component parts shown on this page do not apply to the remanufactured assembly, 4T-390 engine

4шт.

1

JC929490

CORE-FUEL INJECTOR

Return Number, use this part number to return nozzle assembly core for credit when using a remanufactured assembly, 4T-390 engine

4шт.

2

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

1шт.

3

J906659

SEAL

injector nozzle, 7 mm injector tip

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced before nozzle is installed in cylinder head.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring

1шт.

7

NSS

NOT SOLD SEPARAT

STOP - nozzle valve

1шт.

8

NSS

NOT SOLD SEPARAT

TIP - nozzle injector

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - cap, nozzle tip

1шт.

10

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle 1.00mm Thk

1шт.

10

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle 1.04mm Thk

1шт.

10

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle 1.08mm Thk

1шт.

10

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle 1.10mm Thk

1шт.

10

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle 1.14mm Thk

1шт.

10

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle 1.18mm Thk

1шт.

10

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle 1.20mm Thk

1шт.

10

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle 1.24mm Thk

1шт.

10

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle 1.28mm Thk

1шт.

10

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle 1.30mm Thk

1шт.

10

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle 1.34mm Thk

1шт.

10

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle 1.38mm Thk

1шт.

10

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle 1.40mm Thk

1шт.

10

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle 1.44mm Thk

1шт.

10

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle 1.48mm Thk

1шт.

10

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle 1.50mm Thk

1шт.

10

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle 1.54mm Thk

1шт.

10

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle 1.58mm Thk

1шт.

10

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle 1.60mm Thk

1шт.

10

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle 1.64mm Thk

1шт.

10

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle 1.68mm Thk

1шт.

10

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle 1.70mm Thk

1шт.

10

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle 1.74mm Thk

1шт.

10

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle 1.78mm Thk

1шт.

10

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle 1.80mm Thk

1шт.

10

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle 1.84mm Thk

1шт.

10

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle 1.88mm Thk

1шт.

10

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle 1.90mm Thk

1шт.

10

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle 1.94mm Thk

1шт.

10

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle 1.98mm Thk

1шт.
