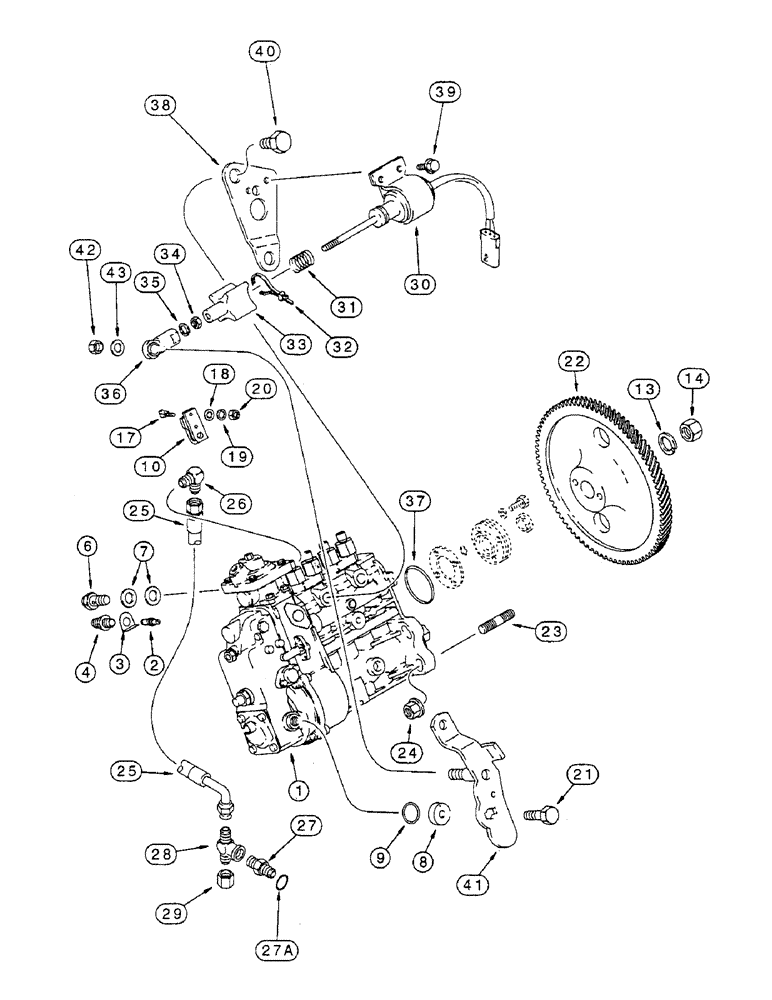

Запчасти Case IH 8825HP (10-68) - FUEL INJECTION PUMP AND DRIVE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J928665

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection

1шт.

1

JR928665

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, component parts shown on this page do not apply to the remanufactured assembly, for service order J928665 pump assembly, item 1

1шт.

1

JC928665

CORE-INJECTION PUMP

Return Number

1шт.

1

JR930153

REMAN-INJECTION PUMP

Reman for New PN J928665

1шт.

1

JC930153

CORE-INJECTION PUMP

Return Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

J928981

LOCK WASHER

WASHER - lock, timing plug

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

6

J932096

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

2шт.

8

691292C1

RETAINER

HOUSING - spring return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

10

1808728C1

LEVER

LEVER - throttle control

1шт.

13

A77775

LOCK WASHER

WASHER - lock

1шт.

14

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

20

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 6 - 1.0 x 16 mm, class 10.9

1шт.

22

J934636

PINION

GEAR - fuel pump

1шт.

23

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm - 1.5

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

26

A77512

ELBOW

ELBOW - 90 degree

1шт.

27

J932321

UNION

NIPPLE - hex, 1/8 PT x 10 - 1.6 mm str thread

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

O-RING - 8.1 ID x 1.6 mm wide

1шт.

28

J924346

TEE

TEE - oil pressure

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

CAP - hex, 7/16-20 inch

1шт.

30

J932529

SOLENOID

SOLENOID - fuel shutoff, 12 volt

1шт.

31

311100A1

SPRING

SPRING - return, plunger

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP STRAP, CABLE, , Boot to solenoid .098" x 8"

1шт.

33

J925171

BOOT

BOOT - protective, plunger

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

NUT - hex, jam, 1/4 inch NF

1шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

311099A1

JOINT

JOINT - ball

1шт.

37

J935032

SEAL

O-RING - sealing, 80 mm ID

1шт.

38

J930590

SUPPORT

BRACKET - solenoid mounting

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 12 mm

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

BOLT - hex, 16 - 2.0 x 12 mm

2шт.

J802998

PACKAGE,SERVICE

KIT - pump shutoff lever

1шт.

41

NSS

NOT SOLD SEPARAT

LEVER - pump shutoff

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

NUT - hex, self-locking, 6 mm - 1.0, class 10

1шт.

43

J934022

WASHER

WASHER - flat, special

1шт.
