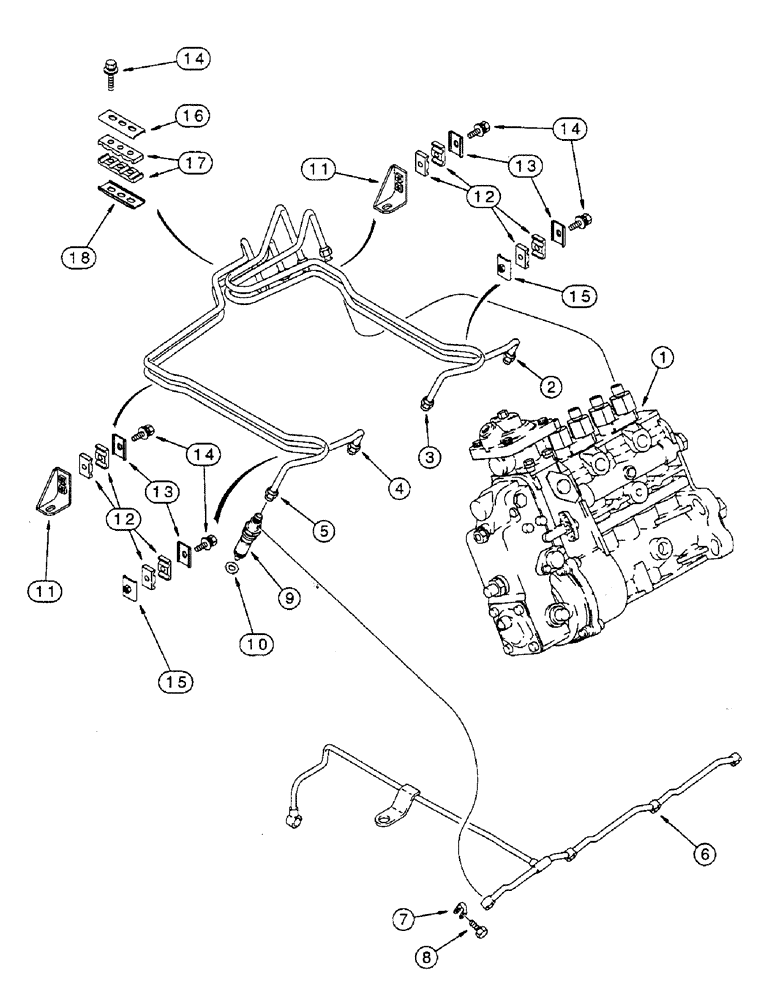

Запчасти Case IH 8825HP (10-58) - FUEL INJECTION SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J928665

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, parts list page 3-15

1шт.

1

JR928665

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC928665

CORE-INJECTION PUMP

Return Number

1шт.

2

J929393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

3

J929394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

4

J929395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

5

J929396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

6

J927633

TUBE

TUBE - manifold, fuel

1шт.

7

J903380

SEAL

SEAL - connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

9

J929490

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, parts list page 3-17

4шт.

9

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

4шт.

9

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

10

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip

4шт.

11

J920414

BRACE

BRACE - fuel tube

2шт.

12

J917746

CLAMP

CLAMP - fuel tube

8шт.

13

J904711

SUPPORT

BRACKET - fuel tube

4шт.

14

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

7шт.

15

J917717

BRACE

BRACKET - fuel tube

2шт.

16

J918785

BRACE

BRACE - tube

1шт.

17

J918786

FIXING BRACKET

CLAMP - vibration

2шт.

18

J918784

CLAMP

BRACE - tube

1шт.
