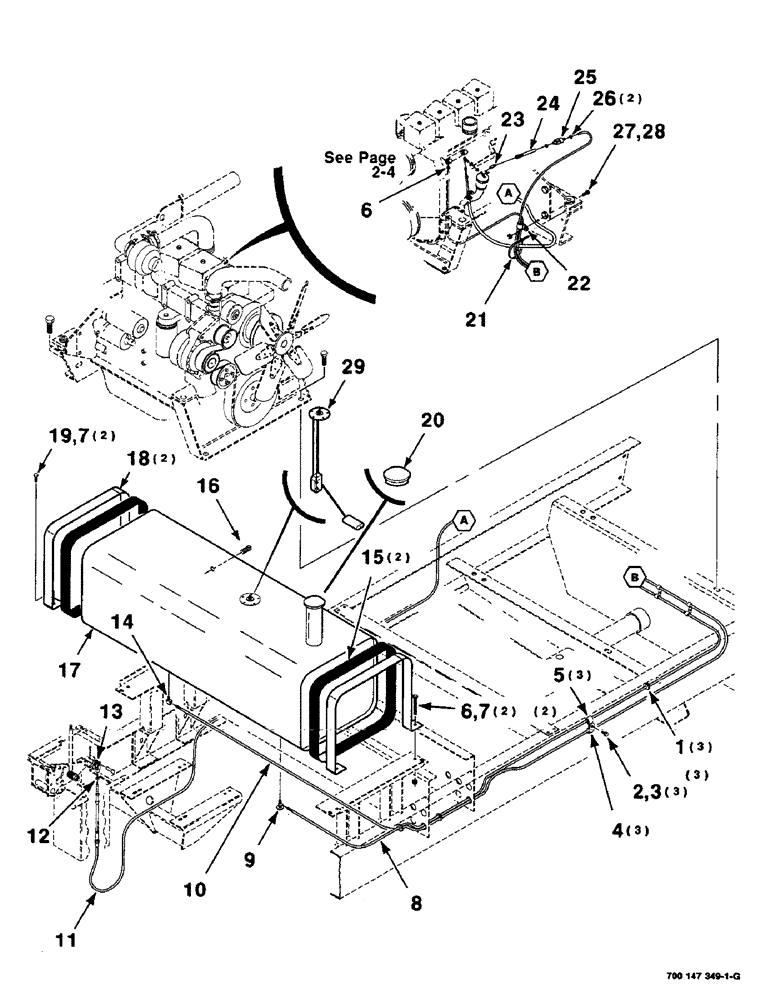

Запчасти Case IH 8825HP (03-06) - FUEL TANK AND LINE ASSEMBLIES, 8825HP, SERIAL NUMBER CFH127600 AND LATER (03) - FUEL SYSTEM

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

3шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

5

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

3шт.

6

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

3шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

700717141

FUEL HOSE,0.50" ID x 122.05", SAE 30R2, SAE J30, SAE J516, SAE J343

0.50" ID x 122.05", SAE 30R2, SAE J30, SAE J516, SAE J343

1шт.

9

700715390

VALVE

- shutoff

1шт.

10

700717142

FUEL HOSE,0.31" ID x 181.10", SAE 30R9, SAE J30, SAE J343, SAE J516

- Line 0.31" ID x 181.10", SAE 30R9, SAE J30, SAE J343, SAE J516

1шт.

11

700708549

CABLE

CONTROL - throttle

1шт.

12

225-14210

NUT,#10-32

1шт.

13

356174C91

FORK

CLEVIS

1шт.

14

700717183

ELBOW

90 DEGREE STREET ELBOW

1шт.

15

700111015

LINER

- felt

2шт.

16

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8-27 PIPE PLUG

1шт.

17

700705627

RESERVOIR, HYDRAULIC

TANK - fuel

1шт.

18

700111119

SECURING STRAP

STRAP - fuel tank

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

700708089

CAP

- fuel tank

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1шт.

23

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1шт.

24

700717139

FUEL HOSE,0.50" ID x 7.87", SAE 30R2 Type 1, SAE J30, SAE J343

0.50" ID x 7.87", SAE 30R2 Type 1, SAE J30, SAE J343

1шт.

25

194199A1

FUEL FILTER

FILTER - fuel

1шт.

26

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

231-5146

FLANGE NUT,3/8"-16

1шт.

29

700706468

SENDER UNIT

SENDER - fuel, level

1шт.
