Запчасти Case IH 8825HP (03-02) - FUEL LINES TANK ASSEMBLIES, SERIAL NUMBER CFH127001 THRU CFH127599 (03) - FUEL SYSTEM

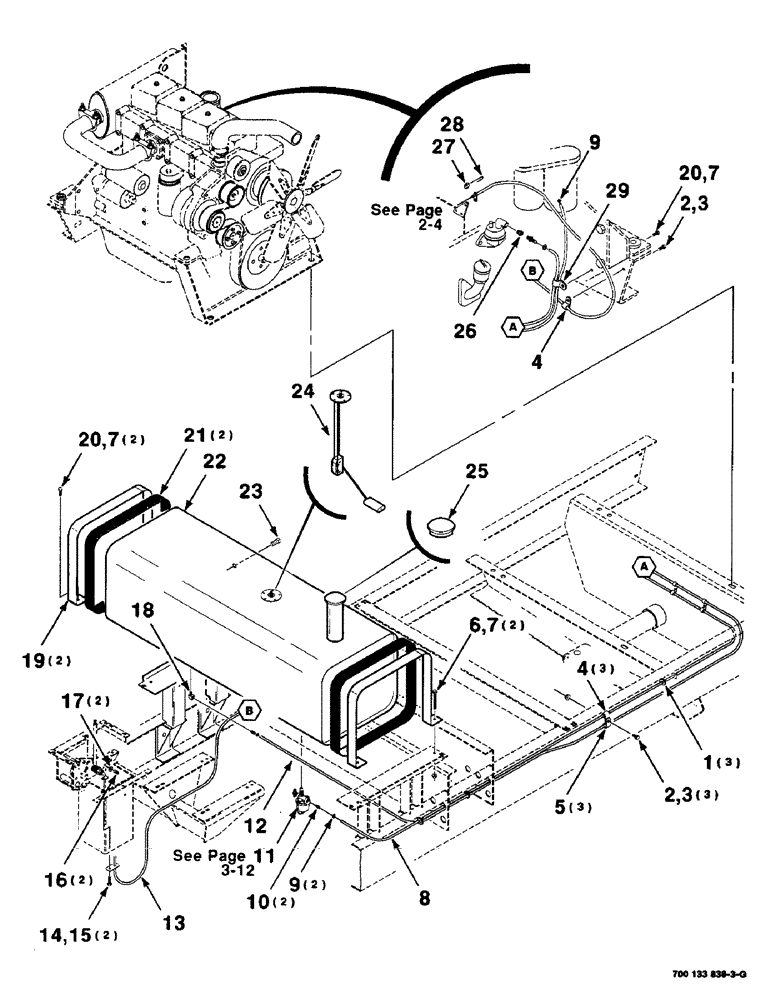

Схема запчастей Case IH 8825HP - (03-02) - FUEL LINES TANK ASSEMBLIES, SERIAL NUMBER CFH127001 THRU CFH127599 (03) - FUEL SYSTEM
29
7
10
21
7
11
1
26
3
13
28
16
15
17
5
9
9
20
27
2
4
7
6
8
24
3
14
20
2
25
23
4
22
18
12
19

Артикул

Название

Примечание

Количество

1

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

3шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

5

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

3шт.

6

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

7

231-5146

FLANGE NUT,3/8"-16

5шт.

8

700117901

LINE

- fuel

1шт.

9

7721020

HOSE CLAMP

CLAMP

3шт.

10

7746662

INSERT

1/8-27 INSERT - fitting

2шт.

11

A30049

STRAINER ELEMENT

FILTER ASSEMBLY - fuel

1шт.

12

700708199

LINE

- fuel

1шт.

13

700705628

CABLE

CONTROL - throttle

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

16

7041932

ROD, CONNECTING

CONNECTOR

2шт.

17

27616R1

WASHER,.281" x 5/8" x .075", HDN

#12 PLAIN WASHER

2шт.

18

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

19

700111119

SECURING STRAP

STRAP - fuel tank

2шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

21

700111015

LINER

- felt

2шт.

22

700705627

RESERVOIR, HYDRAULIC

TANK - fuel (Includes item 24)

1шт.

23

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8-27 PIPE PLUG

1шт.

24

700706468

SENDER UNIT

SENDER - fuel, level

1шт.

25

700708089

CAP

- fuel tank

1шт.

26

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

27

8041014

LEAD SEAL

LEAD SEAL

1шт.

28

7721434

RETAINING WIRE

SEALING WIRE

1шт.

29

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 29
