Запчасти Case IH 8825HP (10-52) - GASKET KIT, VALVE GRIND, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

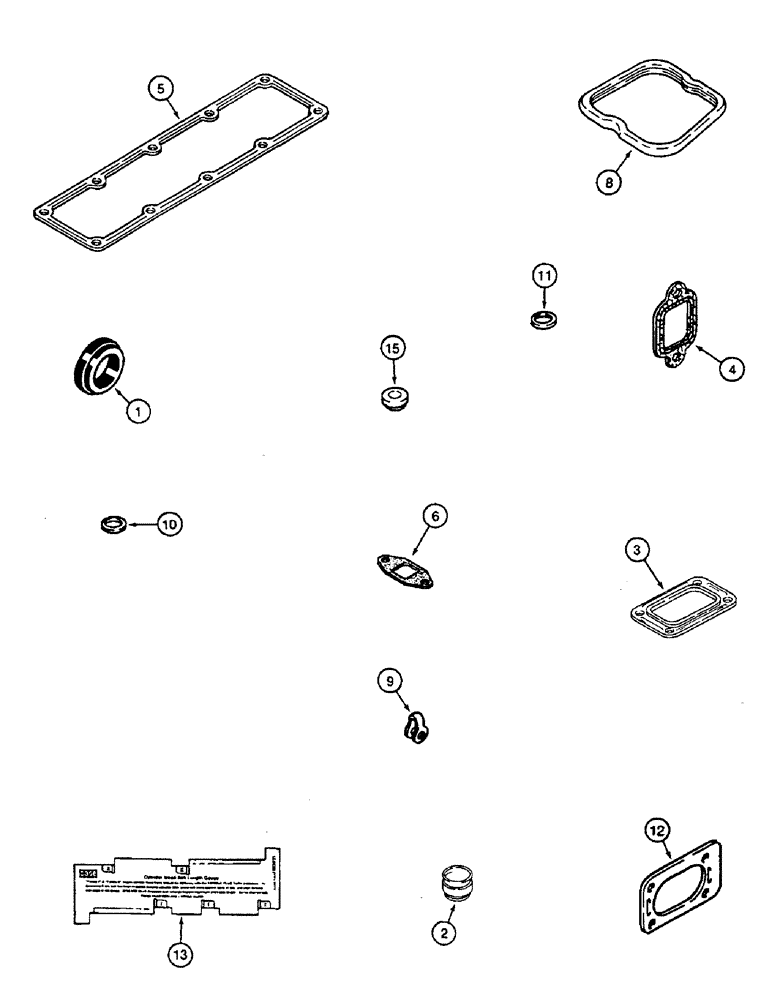

Схема запчастей Case IH 8825HP - (10-52) - GASKET KIT, VALVE GRIND, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
2
10
1
12
16
13
11
9
6
5
4
3
8

Артикул

Название

Примечание

Количество

A77870

SEAL PACKAGE

KIT - gasket, valve grind, Includes: Ref. 1 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, item 2, page 2-21.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J901097

SEAL

valve, intake, identified by color black with orange band

4шт.

2

J921640

SEAL

valve, identified by color orange with silver band

4шт.

3

J919369

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

5

J931605

BOLT

- intake manifold

1шт.

6

J931350

GASKET

- turbo oil drain tube

1шт.

8

J930906

GASKET

SEAL - rocker arm cover

4шт.

9

J903380

SEAL

connector, fuel drain manifold tube

4шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

12

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

13

J823921

GAUGE

cylinder head, bolt length

1шт.

15

J928406

ISOLATOR

noise, rocker arm cover

4шт.

Выбрано товаров: 16
