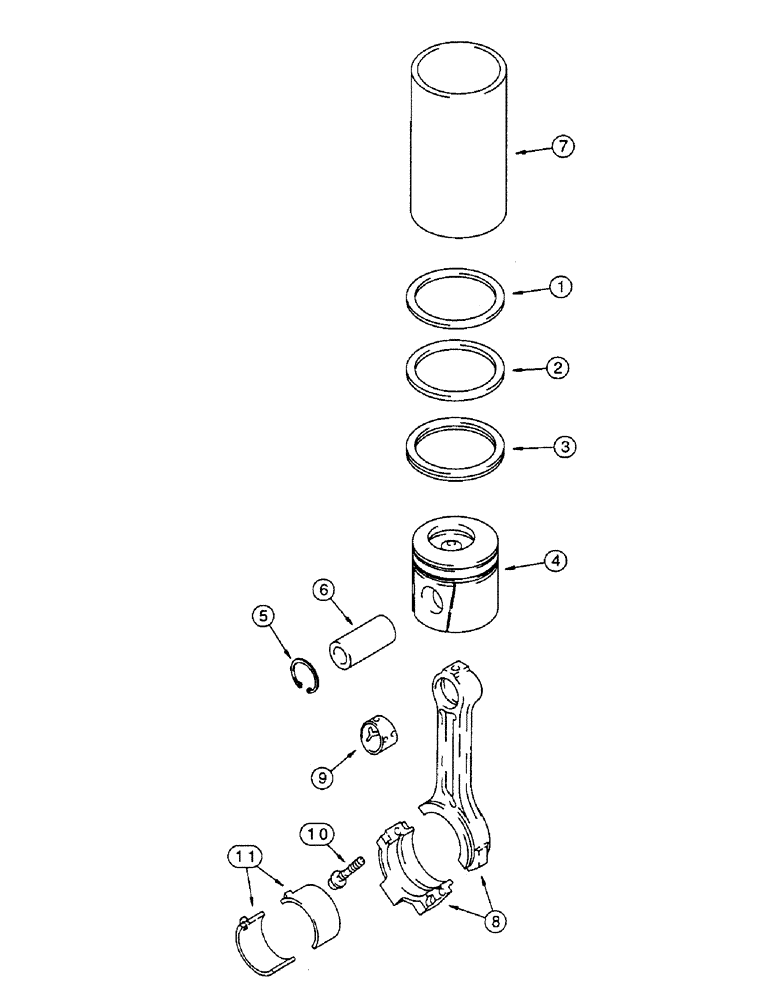

Запчасти Case IH 8825HP (10-44) - PISTONS AND CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J800345

PISTON & RINGS KIT

Kit, Piston & Rings, standard, use to service 3934975 piston

4шт.

Piston height was selected to obtain optimum compression ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last four digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J800349

PISTON & RINGS KIT

Kit, Piston & Rings, standard, use to service 3934976 piston

4шт.

Piston height was selected to obtain optimum compression ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last four digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J804980

PISTON & RINGS KIT

Kit, Piston & Rings, standard, use to service 3932514 piston

4шт.

Piston height was selected to obtain optimum compression ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last four digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J804930

PISTON RING SET

KIT - ring, standard

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J804981

PISTON & RINGS KIT

KIT - piston, 0.5 mm oversize

4шт.

J804931

PISTON RING SET

KIT - ring, 0.5 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J804982

PISTON & RINGS KIT

KIT - piston, 1.0 mm oversize

4шт.

J804932

PISTON RING SET

KIT - ring, 1.0 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair, when liner is installed, use J804980, J800345 or J800349 standard piston kit, see footnote

1шт.

J942581

ROD, CONNECTING

ASSEMBLY - new, includes both halves

4шт.

JR942581

REMAN-CONNECTING ROD

Assembly - connecting, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

4шт.

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly

4шт.

84145405R

REMAN-CONNECTING ROD

8825, 8825HP, Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J941476

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT - upper and lower set, standard

4шт.

11

A77466

BEARING SET

KIT - upper and lower set, 0.25 mm oversize

4шт.

11

A77467

BEARING LINER

KIT - upper and lower set, 0.50 mm oversize

4шт.

11

A77468

BEARING SET

KIT - upper and lower set, 0.75 mm oversize

4шт.

11

A77469

BEARING SET

KIT - upper and lower set, 1.00 mm oversize

4шт.
