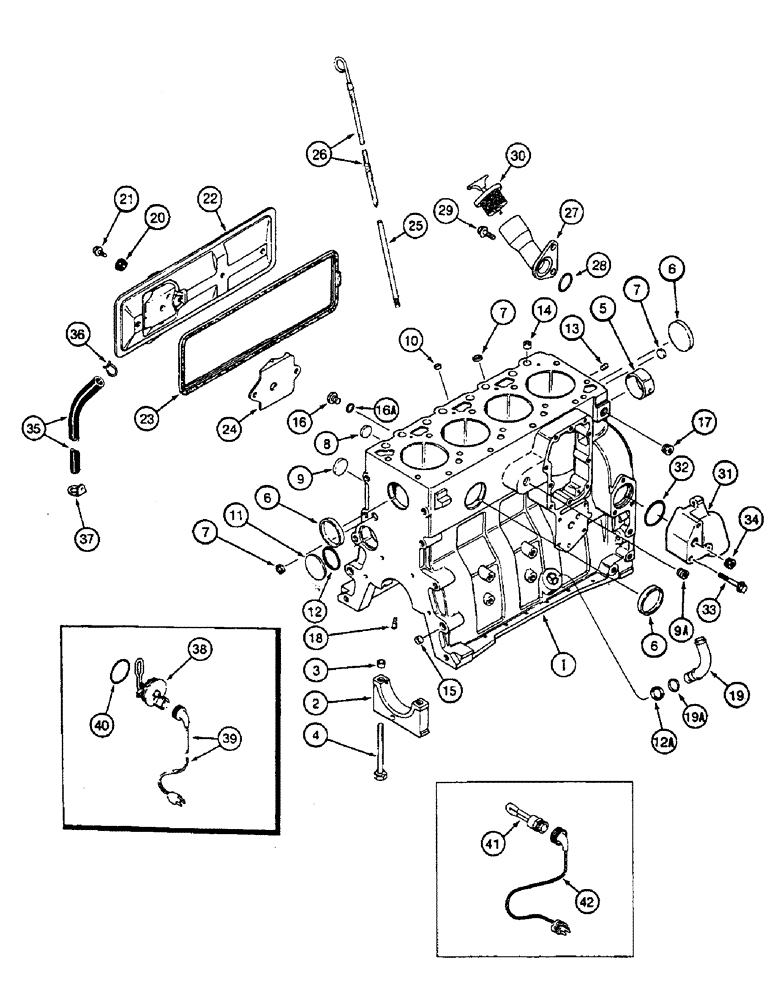

Запчасти Case IH 8825HP (10-36) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

307455A1

ENGINE ASSEMBLY - 4T-390 emissions certified, complete, for service order 234277A2 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

234277A2

BASIC ENGINE

ASSEMBLY - includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

ASSEMBLY - basic, remanufactured, Component parts shown on this page do not apply to the remanufactured assembly; See Note

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY - new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY - short, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

stripped, engine, also order J933220 block hardware kit shown below

1шт.

2

J903492

BEARING CAP

CAP - main bearing

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see page 2-27, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, includes items 9 - 18

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

9a

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

10

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

12a

J920706

PLUG

expansion, 22 mm OD, not used in this application, item 19, J931973 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

PLUG - hex socket, 10 mm

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

O-RING, Cl 7, 8.1MM ID x 1.6 Thk, Plug

1шт.

17

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not used in this application, not shown

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

O-RING, , Sealing, Not used in this application, Not shown 11.3MM ID x 2.2 Thk

1шт.

17c

J932296

PLUG

timing sensor hole, not used in this application, not shown

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

O-RING - sealing, not used in this application, not shown

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, M8 - 1.25 x 16, 8.8, Not used in this application, Not shown

1шт.

18

J930139

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

J931973

TUBE,0.875" OD

TUBE - turbocharger oil drain

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING - sealing, 18 mm ID

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, M8 - 1.25 x 16 mm, 8.8

2шт.

22

J925680

COVER

COVER - tappet

1шт.

23

J283767

GASKET,7.4mm Thk

GASKET - tappet cover

1шт.

24

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

25

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, oil

1шт.

26

J904294

DIPSTICK

DIPSTICK - oil level gauge

1шт.

27

J934190

TUBE

TUBE - oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP - oil fill tube

1шт.

31

J934878

MANIFOLD

CONNECTION - water inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

34

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

37

J928989

CLIP

retaining, not used in this application

1шт.

196803A1

KIT

KIT - engine block heater

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt ENGINE BLOCK HEATER

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater ENGINE BLOCK HEATER

1шт.

40

J910517

O-RING

O-RING - heater sealing ENGINE BLOCK HEATER

1шт.

309651A1

KIT

KIT - engine block heater

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt ENGINE BLOCK HEATER

1шт.

42

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

A77887

PACKAGE,SERVICE

KIT - engine overhaul, includes items 43 - 50, not shown ENGINE OVERHAUL KIT

1шт.

43

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, see page 2-43 ENGINE OVERHAUL KIT

4шт.

44

J919053

PISTON PIN

PIN - piston, See page 2-43 ENGINE OVERHAUL KIT

4шт.

45

A77465

BEARING SET

KIT - upper and lower set, standard, see page 2-43 ENGINE OVERHAUL KIT

4шт.

46

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard, see page 2-37 ENGINE OVERHAUL KIT

4шт.

47

A77896

BEARING SET

main thrust, upper and lower set, standard, see page 2-37 ENGINE OVERHAUL KIT

1шт.

48

A77870

SEAL PACKAGE

KIT - gasked, valve grind, see page 2-47 ENGINE OVERHAUL KIT

1шт.

49

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, see page 2-21 ENGINE OVERHAUL KIT

1шт.

50

A77673

GASKET KIT

oil pan, see page 2-19 ENGINE OVERHAUL KIT

1шт.
