Запчасти Case IH 8825HP (10-32) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

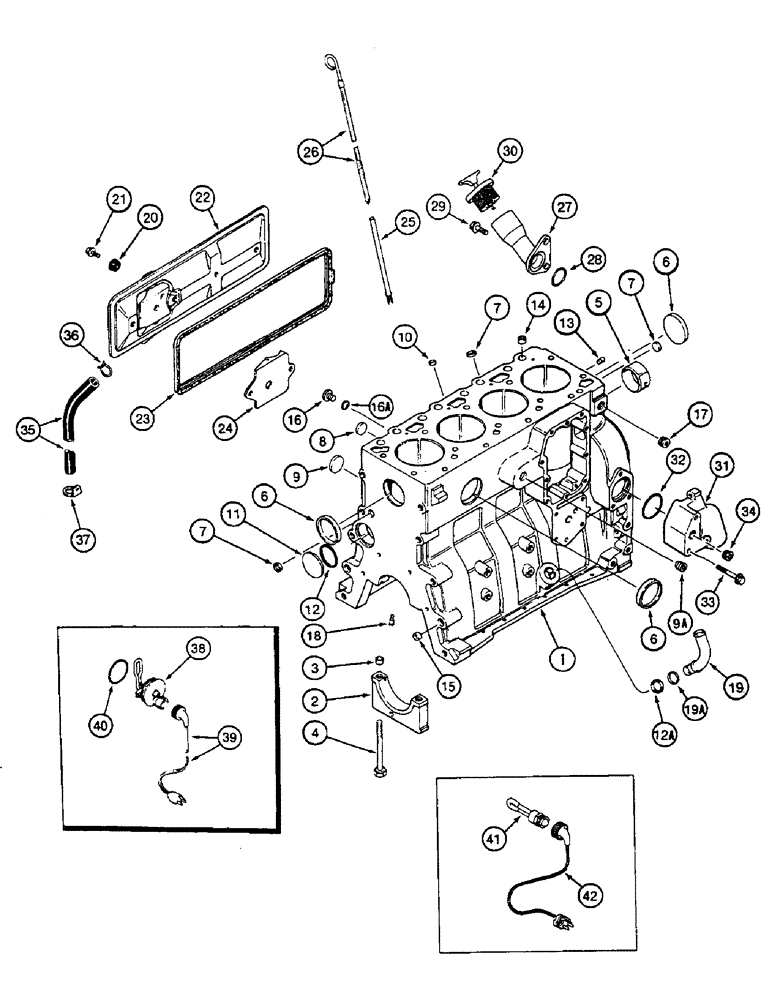

Схема запчастей Case IH 8825HP - (10-32) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
16
7
27
33
16a
1
25
28
7
20
9
26
10
2
34
31
37
19a
39
15
21
41
29
13
18
12
12a
5
14
24
30
8
3
19
23
9a
6
11
38
22
6
36
6
4
17
35
7
42
40
32

Артикул

Название

Примечание

Количество

307342A1

ENGINE ASSEMBLY, 4-390 emissions certified, complete, for service order 302562A1 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

302562A1R

REMAN-BASIC ENGINE

Assembly basic, remanufactured, component parts shown on this page do not apply to the remanufactured assembly; See Note

1шт.

302562A1C

CORE-BASIC ENGINE

Return Part Number use this part number to return basic engine core for credit when using a remanufactured assembly

1шт.

302562A1

BASIC ENGINE

ASSEMBLY - includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner

1шт.

J933649

SHORT ENGINE

short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

JR933649

REMAN-SHORT ENGINE

Block Assembly short, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC933649

CORE-SHORT ENGINE

Return Part Number use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

J932012

SCREW

stripped, engine, also order J933220 block hardware kit shown below

1шт.

2

J903492

BEARING CAP

CAP - main bearing

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see page 2-27, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, includes items 9 - 18

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

9a

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

10

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

12a

J920706

PLUG

PLUG - expansion, 22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

PLUG - hex socket, 10 mm

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

O-RING, Cl 7, 8.1MM ID x 1.6 Thk, Plug

1шт.

17

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not used in this application, not shown

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

O-RING, , Sealing, Not used in this application, Not shown 11.3MM ID x 2.2 Thk

1шт.

17c

J932296

PLUG

timing sensor hole, not used in this application, not shown

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

O-RING - sealing, not used in this application, not shown

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, M8 - 1.25 x 16, 8.8, Not used in this application, Not shown

1шт.

18

J930139

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

J931973

TUBE,0.875" OD

turbocharger oil drain, not used in this application, item 12A plug is installed in this port

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING - sealing, 18 mm ID, not used in this application

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, M8 - 1.25 x 16 mm, 8.8

2шт.

22

J925680

COVER

COVER - tappet

1шт.

23

J283767

GASKET,7.4mm Thk

GASKET - tappet cover

1шт.

24

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

25

A77645

TUBE

TUBE - oil dipstick, at block

1шт.

26

J904294

DIPSTICK

DIPSTICK - oil level gauge

1шт.

27

J934190

TUBE

TUBE - oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP - oil fill tube

1шт.

31

J934878

MANIFOLD

CONNECTION - water inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

34

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

37

J928989

CLIP

retaining, not used in this application

1шт.

196803A1

KIT

KIT - engine block heater

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt ENGINE BLOCK HEATER

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater ENGINE BLOCK HEATER

1шт.

40

J910517

O-RING

O-RING - heater sealing ENGINE BLOCK HEATER

1шт.

309651A1

KIT

KIT - engine block heater

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt ENGINE BLOCK HEATER

1шт.

42

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

Выбрано товаров: 62
