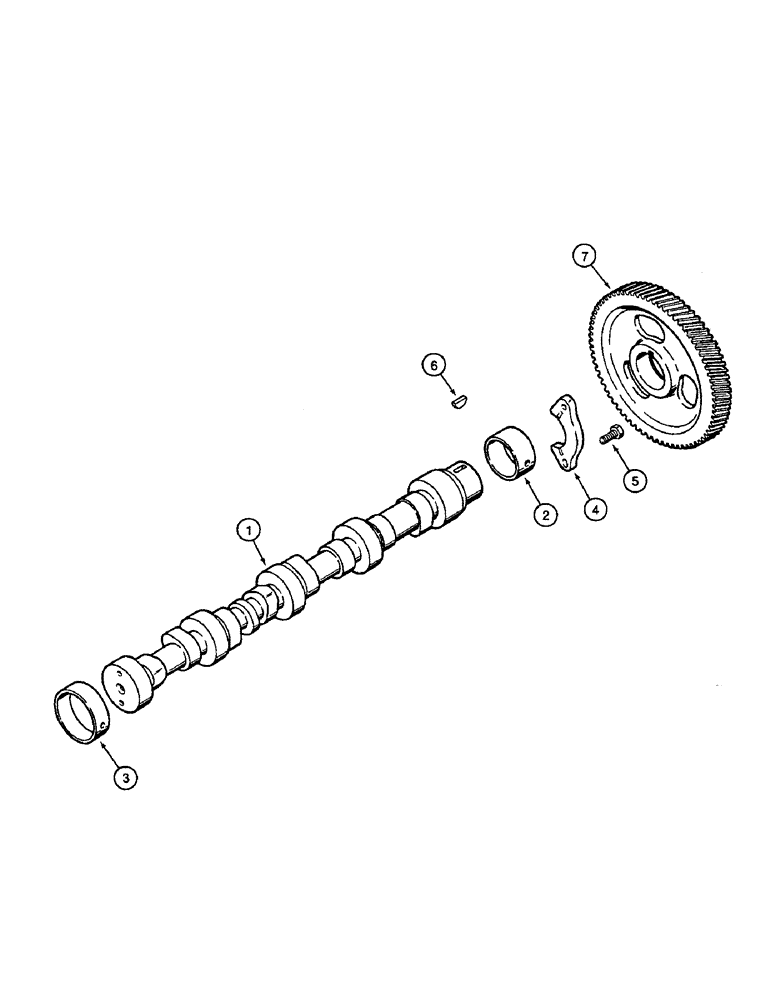

Запчасти Case IH 8825HP (10-30) - CAMSHAFTS (02) - ENGINE

1

J929039

CAMSHAFT

- engine, 4-390 engine

1шт.

J929039R

REMAN-CAMSHAFT

8825, 8825HP, BOTH SELF-PROPELLED WINDROWER TRACTOR

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

1

J929885

CAMSHAFT

- engine, 4T-390 engine

1шт.

1

J929885R

REMAN-CAMSHAFT

8825, 8825HP, Both CASE IH SELF-PROPELLED WINDROWER TRACTOR, engine, 4T-390 engine

1шт.

1

J929885C

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

- camshaft, front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, intermediate and rear, service repair only

4шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, J903242 bushings.

1шт.

4

J927155

SUPPORT

- thrust, camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Camshaft gear M4 x 6.5 x 15.72

1шт.

7

J929030

PINION

GEAR - camshaft, 4-390 engine

1шт.

7

J929028

GEAR

GEAR - camshaft, 4T-390 engine

1шт.
