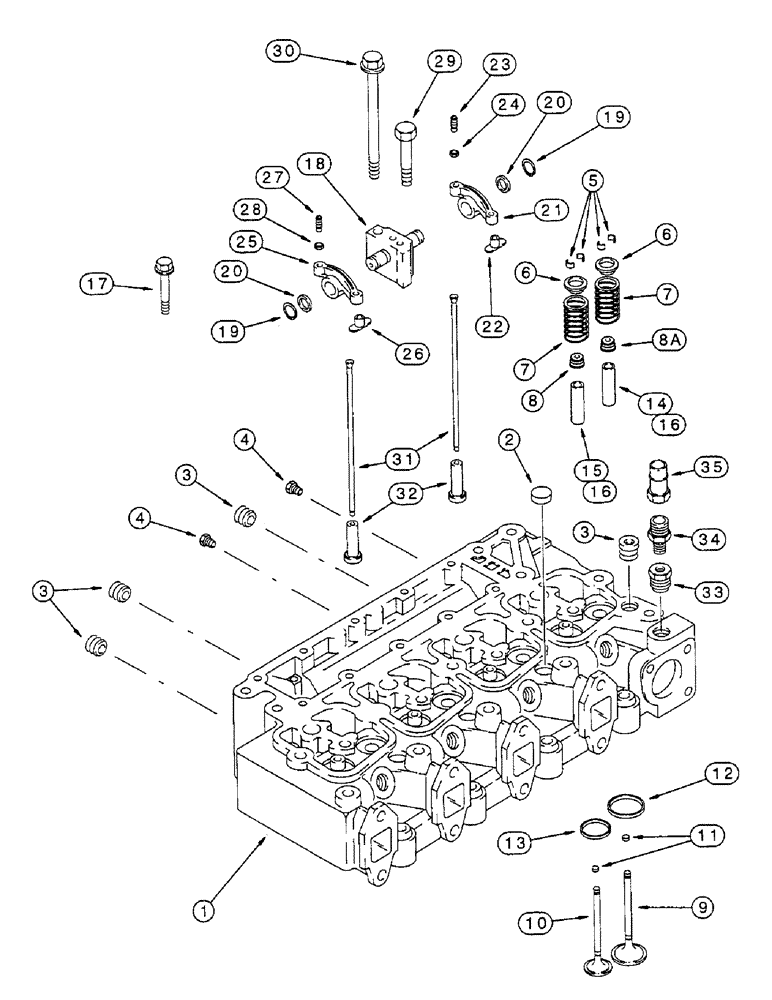

Запчасти Case IH 8825HP (10-26) - ENGINE, CYLINDER HEAD VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR933494

REMAN-CYLINDER HEAD

cylinder, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC929736

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly

1шт.

J933494

HEAD (CYLINDER)

ASSEMBLY, new, with valves

1шт.

1

J933419

HEAD (CYLINDER)

ASSEMBLY, new, without valves

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, , One removed to install temperature sending unit Sq Soc, 1/2"-14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER - valve

16шт.

6

J900299

RETAINER

- valve spring

8шт.

7

J932453

SPRING

- valve

8шт.

8

J901097

SEAL

- valve

4шт.

8a

J901097

SEAL

- valve

4шт.

9

J920867

VALVE

- intake

4шт.

10

J920868

VALVE

- exhaust

4шт.

11

J280911

WEAR PAD

service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm OD

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

SHAFT ASSEMBLY - rocker arm

4шт.

19

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

20

J900245

WASHER

- thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

1шт.

25

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

4шт.

31

J923262

PUSH ROD

ROD - push, rocker arm

8шт.

32

J931623

TAPPET

- valve, push rod

8шт.

33

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

Adapter - straight, 1/2 PT x 1/4 inch female PT

1шт.

34

J911901

VALVE, CHECK

VALVE - check

1шт.

35

217-112

FITTING,3/8" Hose x 3/8" NPTF, Fem, Barbed

straight, 3/8 barb end x 3/8 inch female PT

1шт.
