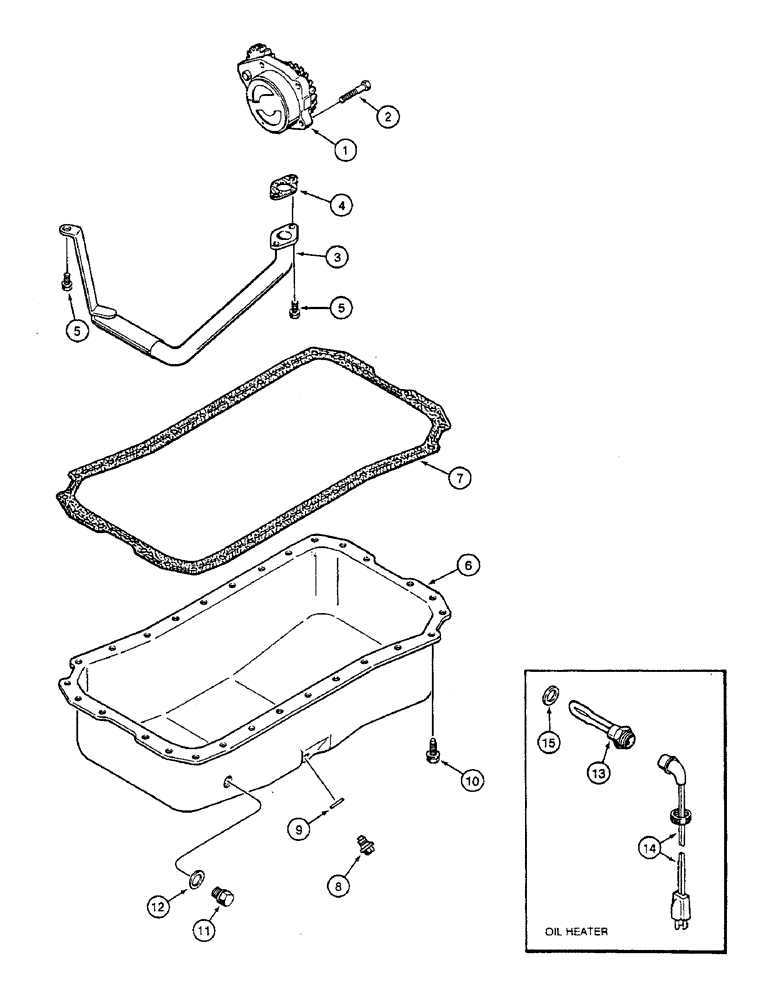

Запчасти Case IH 8825HP (10-22) - OIL PUMP AND OIL PAN / ENGINE OIL HEATER (02) - ENGINE

1

J932449

PUMP, ENGINE OIL

new, 4-390 engine

1шт.

1

JR937028

REMAN-ENG OIL PUMP

8825, 8825HP, Reman For New P/N J932449

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

1

J930336

PUMP, ENGINE OIL

new, 4T-390 engine

1шт.

1

JR930336

REMAN-ENG OIL PUMP

4T-390 engine, Remanufactured Oil Pump

1шт.

1

JC926202

CORE-ENGINE OIL PUMP

Return Number, 4T-390 engine

1шт.

2

J900677

BOLT,Hex

hex, full threads, 8 - 1.25 x 30 mm, M8 x 30

4шт.

3

J905223

TUBE

TUBE - suction, oil

1шт.

4

J931349

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

5

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, Hex, Flg Hd, M8 x 25, Spcl

3шт.

6

J907570

PAN

PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77673 gasket kit for service

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

8

J924147

PLUG,M18 x 1.5

hex magnetic, special, 12 mm - 1.5, drain, oil, M18

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5, pipe, heater hole, M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

A77673

GASKET KIT

oil pan, includes Ref. 4, 7 and 9

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

When engine oil heater kit is ordered, Ref. 15, J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt

1шт.

14

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

When engine oil heater kit is ordered, Ref. 15, J902425 washer must also be ordered.

1шт.
