Запчасти Case IH 8825HP (10-16) - TURBOCHARGER SYSTEM, CONTINUED, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

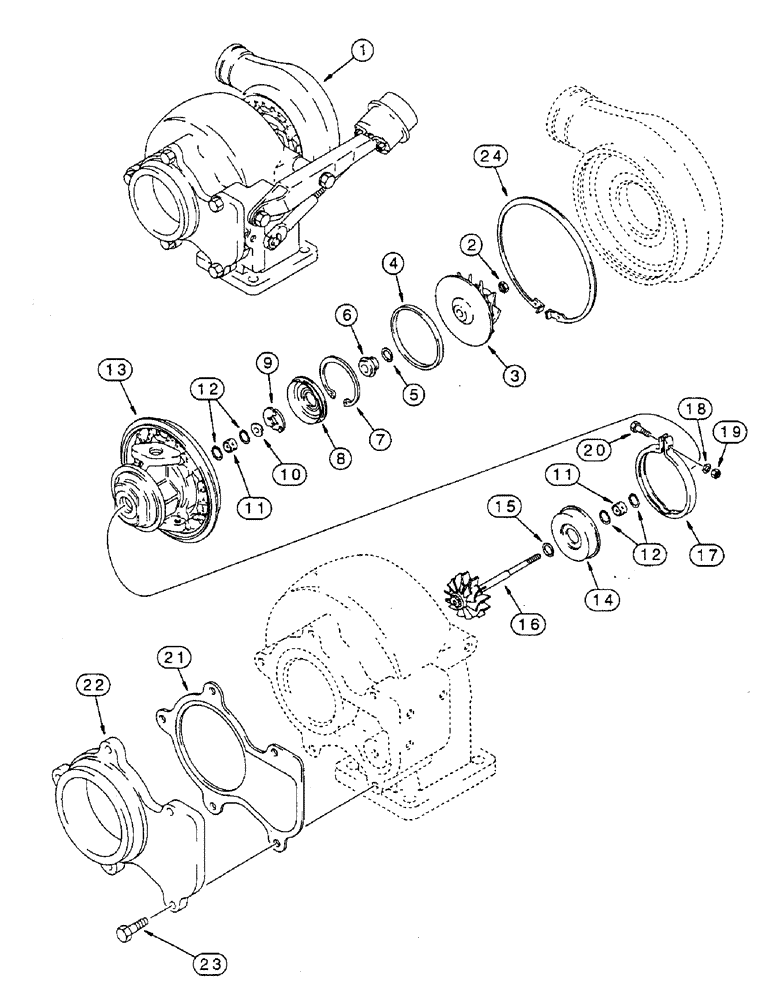

Схема запчастей Case IH 8825HP - (10-16) - TURBOCHARGER SYSTEM, CONTINUED, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
11
18
10
14
2
12
19
1
23
7
21
11
20
8
3
15
16
6
24
12
5
22
17
9
4
13

Артикул

Название

Примечание

Количество

J802798

TURBOCHARGER

KIT - large frame, includes new turbocharger assembly, (1) J519807 turbo oil drain tube gasket and (1) J709861 turbocharger mounting gasket, not shown, see items 1 -11 on page 2-15

1шт.

JR802798

REMAN-TURBOCHARGER

KIT - turbocharger, engine, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC537562

CORE-TURBOCHARGER

Return Part Number\r\n,Use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

J580234

HOUSING ASSY.

center - turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - slit ring

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL - oil, not shown

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - with shaft

1шт.

17

J531670

CLIP

CLAMP - adjustable

1шт.

18

J535971

WASHER

WASHER - flat, special

1шт.

19

J531582

NUT

NUT - hex

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT - hex

1шт.

Part of turbocharger overhaul kit P/N J575205.

1шт.

21

J535001

GASKET,0.25mm Thk

GASKET - adapter

1шт.

22

J527759

ADAPTER

ADAPTER - connection

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT - hex, full threads, 8 - 1.25 x 20 mm

5шт.

24

J535800

RING, SNAP

RING SNAP RING - snap

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 2, 5, 7 - 9, 11, 12, 15, 15A, 19 and 20

1шт.

Выбрано товаров: 40
