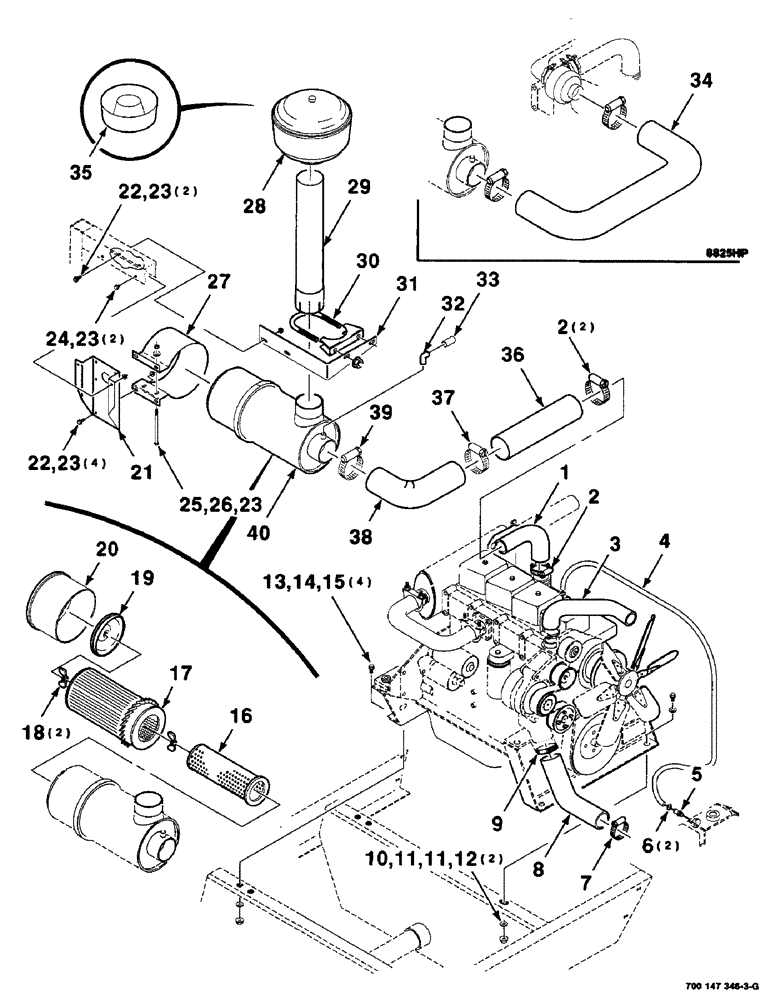

Запчасти Case IH 8825HP (03-10) - AIR BREATHER AND RADIATOR HOSE ASSEMBLIES, SERIAL NUMBER CFH127600 AND LATER (02) - ENGINE

1

700715369

INTAKE AIR HOSE,76.20 mm ID

Engine 76.20 mm ID

1шт.

2

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP

3шт.

3

700708466

HOSE,44.45 mm ID x 310.00 mm, SAE 20R4 Class C Per SAE J20

RADIATOR HOSE, , Upper 44.45 mm ID x 310.00 mm, SAE 20R4 Class C Per SAE J20

1шт.

4

700717899

HOSE,0.38" ID x 15.75", SAE 20R3 Class D2, SAE J20

Overflow 0.38" ID x 15.75", SAE 20R3 Class D2, SAE J20

1шт.

5

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT - hose

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

7

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, #32, 1.56/2.50 Type F Worm

1шт.

8

700708469

HOSE,44.45 mm ID, 58.00 mm ID x 266.00 mm, SAE 20R4 Class C Per SAE J20

RADIATOR HOSE, , Lower 44.45 mm ID, 58.00 mm ID x 266.00 mm, SAE 20R4 Class C Per SAE J20

1шт.

9

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, #44, 2.31/3.25 Type F Worm

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8-11 X 1-3/4 C

4шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

16

N8153

FILTER, ELEMENT

ELEMENT - secondary

1шт.

17

D56453

AIR CLEANER

ELEMENT - primary

1шт.

18

D78354

WING NUT

AIR CLEANER - nut

2шт.

19

D37979

BAFFLE

1шт.

20

A40951

CUP

1шт.

21

700111118

SUPPORT

- mounting

1шт.

22

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

25

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

5/16-18 X 5-1/2 C

1шт.

26

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

27

700133866

CLAMP

- air cleaner

1шт.

28

700715380

PRECLEANER

PRE-CLEANER (Includes item 33)

1шт.

29

700715366

TUBE

- extension

1шт.

30

7024938

CLAMP

1шт.

31

700149654

SUPPORT

- filter

1шт.

32

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

33

700707040

INDICATOR

SERVICE INDICATOR

1шт.

34

700715368

INTAKE AIR HOSE,76.20 mm ID, 88.90 mm ID

Air Cleaner (8825HP Only) 76.20 mm ID, 88.90 mm ID

1шт.

35

700715381

BOWL

- pre cleaner

1шт.

36

700133867

TUBE,2.87" ID, 76.2 mm OD, 512 mm Length

- air cleaner

1шт.

37

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, #64, 3.56/4.50 Type F Worm

1шт.

38

700715370

INTAKE AIR HOSE,76.20 mm ID, 88.90 mm ID

Air Cleaner 76.20 mm ID, 88.90 mm ID

1шт.

39

P836994

CLAMP

1шт.

40

A189057

AIR CLEANER

ASSEMBLY (Includes items 13, 14, 15, & 16)

1шт.
