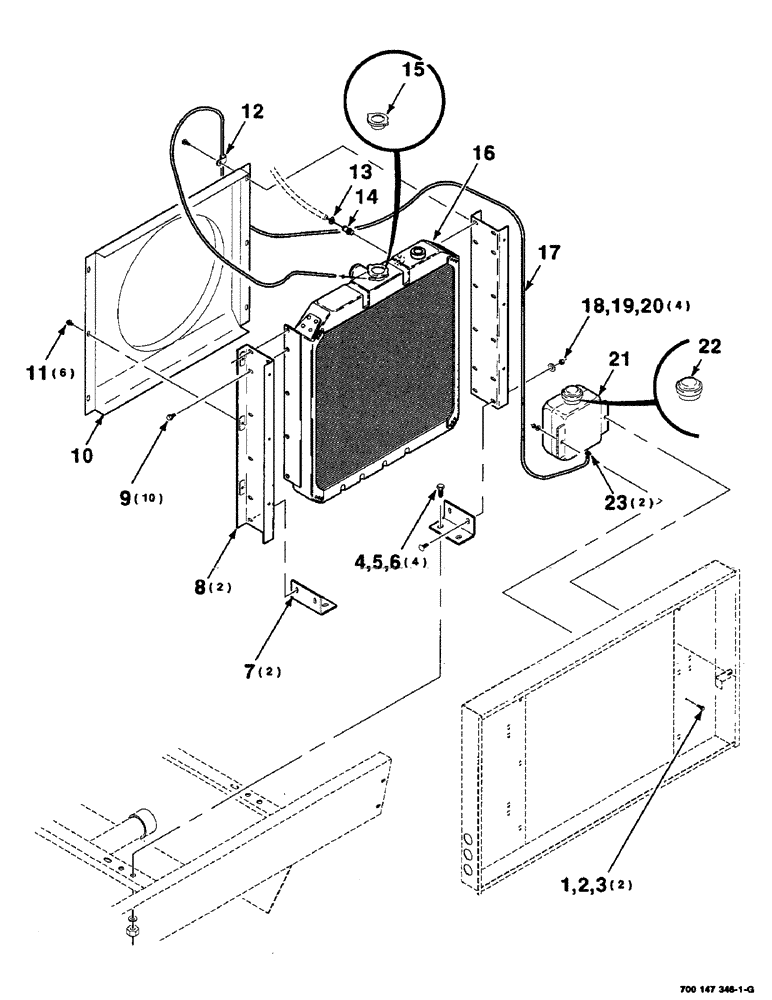

Запчасти Case IH 8825HP (02-12) - RADIATOR ASSEMBLIES, SERIAL NUMBER CFH127600 AND LATER (02) - ENGINE

1

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

3

425-104

NUT,1/4"-20, Cl 5

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

700115015

SUPPORT

ANGLE - mounting

2шт.

8

700115012

SUPPORT

WA

2шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

10шт.

10

700117910

SHROUD

WA - diesel

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

12

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

13

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, #32, 1.56/2.50 Type F Worm

1шт.

14

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT - hose

1шт.

15

700708265

CAP

- radiator

1шт.

16

700717259

RADIATOR

(Includes item 14)

1шт.

17

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

20

425-106

NUT,3/8"-16, Cl 5

4шт.

21

700705626

TANK

- overflow (Includes item 22)

1шт.

22

700706181

CAP

1шт.

23

7721020

HOSE CLAMP

CLAMP

2шт.
