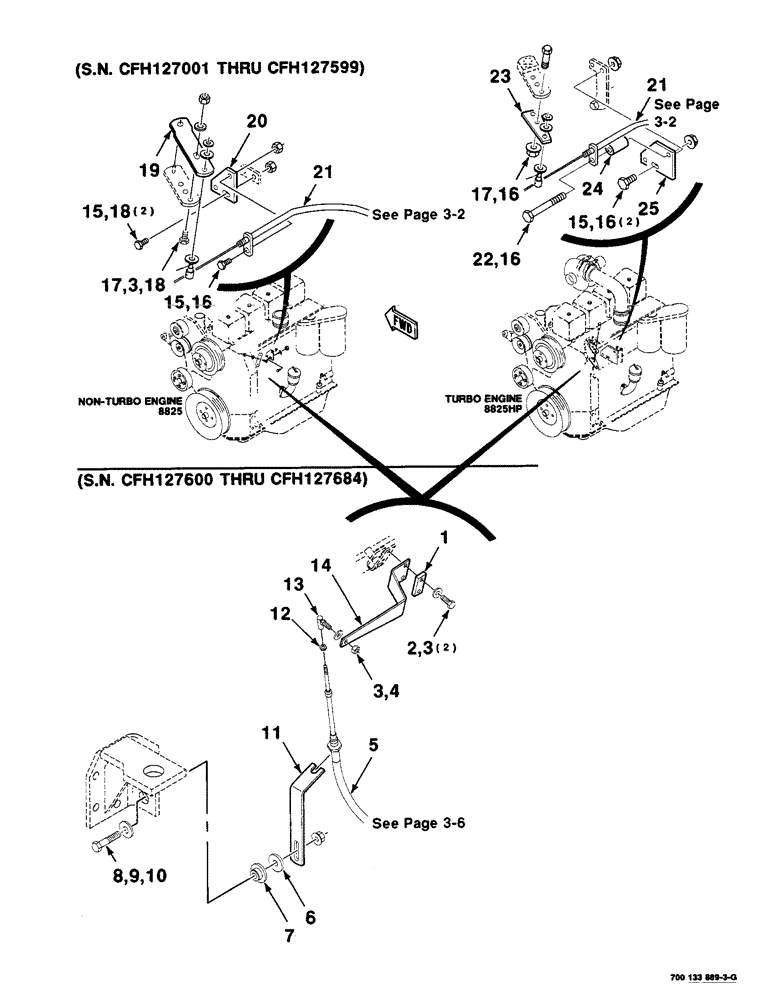

Запчасти Case IH 8825HP (02-04) - ENGINE THROTTLE LINKAGE ASSEMBLIES, S/N CFH127001 THRU CFH127599, S/N CFH127600 THRU CFH127684 (02) - ENGINE

1

700133969

SPACER

1шт.

2

7772155

BOLT

M6 X 1.0 16 C

2шт.

3

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

4

425-114

NUT,1/4"-28, G5

1шт.

5

700708549

CABLE

CONTROL - throttle

1шт.

6

700117552

WASHER

- special

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - rubber

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

496-81010

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

11

700134323

SUPPORT

- throttle

1шт.

12

225-14210

NUT,#10-32

1шт.

13

A76747

BALL JOINT,#10 -32 x 7/8" L

ASM - ball

1шт.

14

700133953

ARM

- throttle

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

425-104

NUT,1/4"-20, Cl 5

3шт.

19

700117917

STRAP

1шт.

20

700117916

MOUNTING PARTS

MOUNTING - cable

1шт.

21

700705628

CABLE

CONTROL - throttle

2шт.

21a

7041932

ROD, CONNECTING

Used on ends of Throttle Cable (not shown)

2шт.

22

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

23

700124510

STRAP

- throttle

1шт.

24

6605174

TUBE,19.05 mm OD, 35 mm Length

MOUNTING - tube

1шт.

25

700133930

BRACKET

MOUNTING - cable

1шт.
