Запчасти Case IH 8825HP (02-02) - ENGINE ACCESSORIES AND MOUNTING ASSEMBLIES (02) - ENGINE

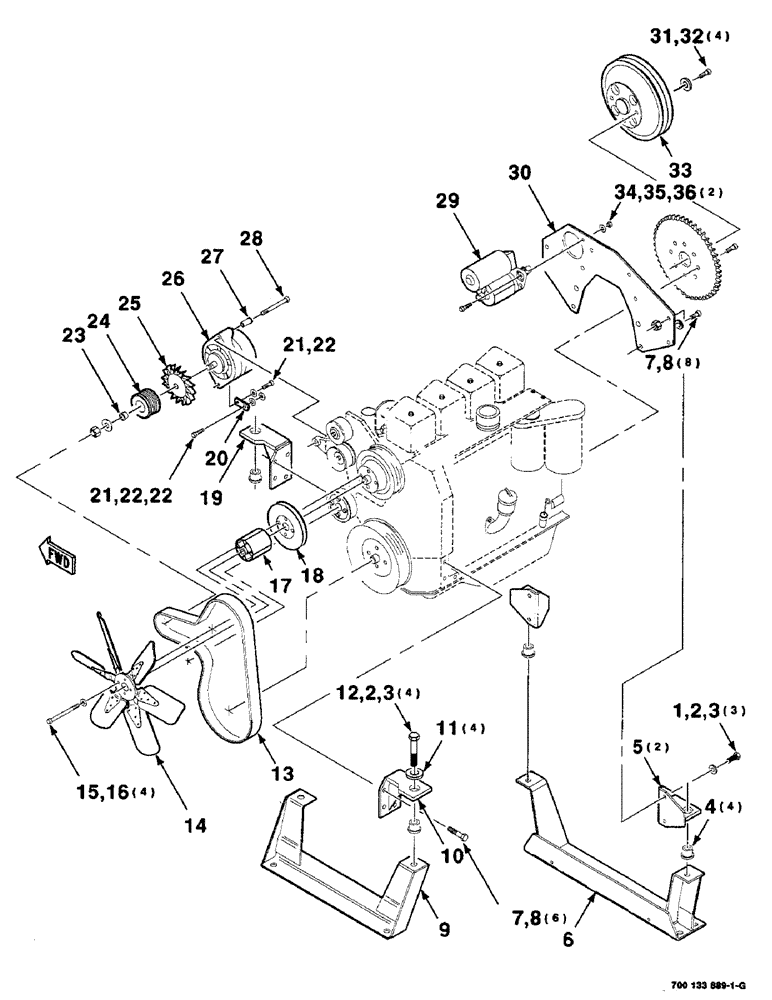

Схема запчастей Case IH 8825HP - (02-02) - ENGINE ACCESSORIES AND MOUNTING ASSEMBLIES (02) - ENGINE
23
17
4
20
34
26
3
7
10
2
14
7
12
22
22
16
5
8
21
6
15
31
3
1
29
25
35
28
11
9
27
13
19
32
21
24
2
8
33
18
30
22
36

Артикул

Название

Примечание

Количество

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

2

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

7шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

7шт.

4

700707039

RUBBER MOUNTING

MOUNT - rubber

4шт.

5

700117904

MOUNTING PARTS

MOUNTING WA - rear

2шт.

6

700117907

PLATE

PLATE WA - rear

1шт.

7

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

14шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER, M13.5 x 24 x 2.5

14шт.

9

700117919

MOUNTING PARTS

MOUNTING WA - front

1шт.

10

700117888

MOUNTING PARTS

MOUNTING WA - front, left (S.N. CFH127001 thru CFH127599)

1шт.

700147377

MOUNTING PARTS

MOUNTING WA - front, left (S.N. CFH127600 and later)

1шт.

11

457432

WASHER

WASHER

4шт.

12

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

4шт.

13

J911587

V-BELT,27.92mm W x 1363.1mm L, 8 Ribs

1шт.

14

NLS

NO LONGER SERVICED

FAN

1шт.

15

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 X 1.50 X 95 C

4шт.

16

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10 HARDENED PLAIN WASHER

4шт.

17

A184546

SPACER

SPACER - fan

1шт.

18

A189155

PULLEY

SHEAVE

1шт.

19

700117889

MOUNTING PARTS

MOUNTING WA - front, right

1шт.

20

700117858

STRAP

STRAP

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT, , C Hex, M8 x 25, 8.8

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER, M8 x 16 x 1.6

3шт.

23

J908563

RETAINER

RETAINER - pulley

1шт.

24

J908560

PULLEY

PULLEY - alternator

1шт.

25

221425R1

FAN

FAN - alternator

1шт.

26

A187873

ALTERNATOR,12V, 65A

ALTERNATOR

1шт.

26

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

26

AC187873

CORE-ALTERNATOR

Return number

1шт.

26

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

27

J902469

SPACER

SPACER

1шт.

28

7771975

SCREW,Hex, M10 x 100mm, Cl 8.8

M10 X 1.50 X 100 C

1шт.

29

1987559C1

STARTING MOTOR

STARTER

1шт.

29

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

29

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

30

700117898

LARGE PLATE

PLATE, LARGE PLATE - rear

1шт.

31

700708246

CAPSCREW,M12 x 1.25 x 45mm, Cl 12.9

M12 X 1.25 X 45 C

4шт.

32

700708548

WASHER

12 HARDENED PLAIN WASHER

4шт.

33

700117918

SHEAVE

SHEAVE - 2B Powerband (S.N. CFH127001 thru CFH127599)

1шт.

700147376

SHEAVE

SHEAVE - 2B Powerband (S.N. CFH127600 and later)

1шт.

34

7771728

SCREW

M10 X 1.50 X 40 C

2шт.

36

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER, M10 x 20 x 2

2шт.

Выбрано товаров: 43
