Запчасти Case IH 8825HP (09-08) - GROUND SPEED ASSIST KIT, ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

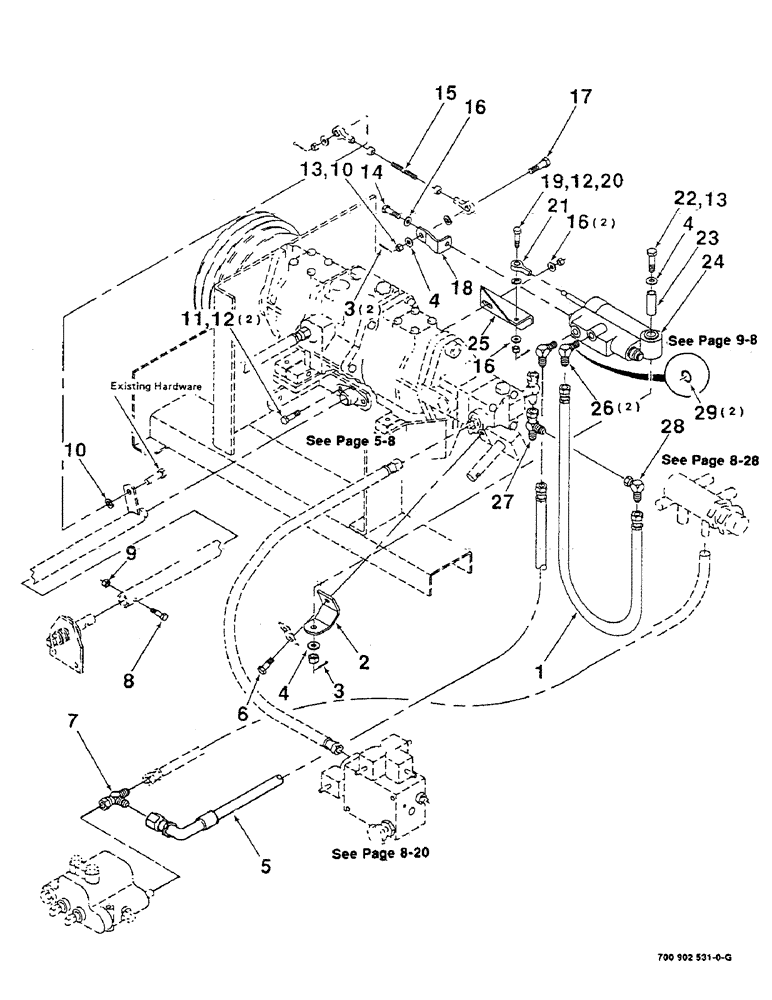

Схема запчастей Case IH 8825HP - (09-08) - GROUND SPEED ASSIST KIT, ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS
13
16
10
1
3
4
14
27
9
8
18
13
12
2
26
10
17
21
20
5
23
16
19
12
11
15
22
6
3
7
24
25
4
28
29
4
16

Артикул

Название

Примечание

Количество

HK60590

GROUND SPEED ASSIST KIT COMPLETE

1шт.

1

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

1шт.

2

700121184

SUPPORT

MOUNTING

1шт.

3

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

3шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

5

700711970

HOSE

- hydraulic

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

8

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS SPECIAL

1шт.

9

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

425-105

NUT,5/16"-18, G5

3шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

15

700121177

ROD

1шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

700111557

SCREW

- special

1шт.

18

700121183

BRACKET

ANGLE

1шт.

19

700121188

SCREW

5/16-18 X 1-1/2 C SPECIAL

1шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

700710788

TRACK ROD END

BEARING - end, rod

1шт.

22

700121189

SCREW

3/8-16 X 2-3/4 C SPECIAL

1шт.

23

700121187

BUSHING

1шт.

24

700710787

SERVO-CONTROL

ASSEMBLY - servo

1шт.

25

700121185

ANGLE

- support

1шт.

26

700707498

ELBOW

- 90 degrees (Includes item 29)

2шт.

27

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING - hydraulic, T-Adapter

1шт.

28

700707491

ELBOW

- 90 degrees

1шт.

29

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

Выбрано товаров: 30
